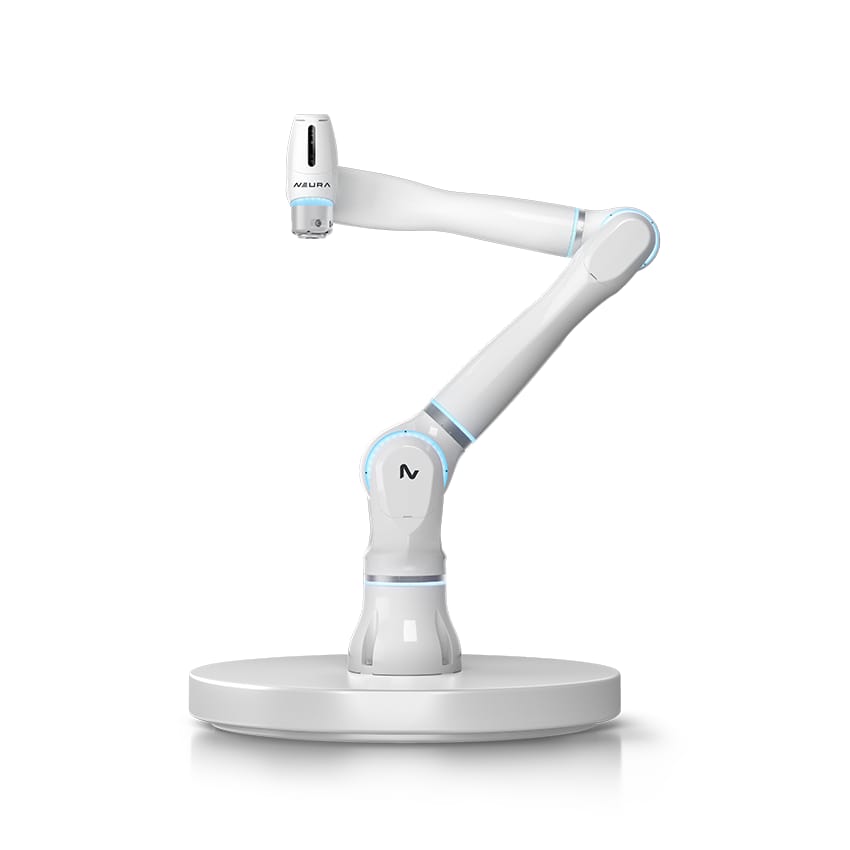

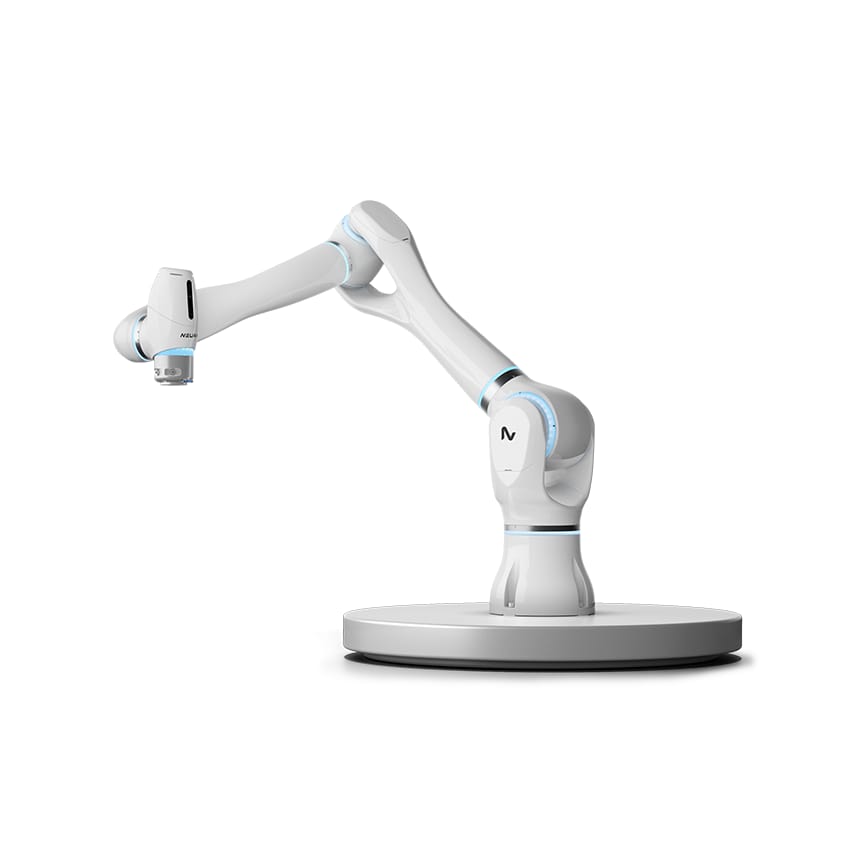

Neura Robotics MAiRA Pro M
The MAiRA line of cobots is available in both 6-axis and 7-axis configurations and can be mounted in any position.
1,400 mm
15 kg
ROI Calculator
€39,500.00 excl. VAT.
From 1.000,00 € a month with lease buy or installment.
- Overview
- Compare
- In the box
- Use case combination
- Specifications
- Description
- Downloads
- FAQ
- Similar products
Extreme Versatility
The integrated augmented intelligence enables MAiRA to be used for more applications than any other robot.
Intelligent
The integrated augmented intelligence enables MAiRA to be used for more applications than any other robot.
Featured on Unchained TV
Unfortunately, there are no use case videos yet for this product. Click here to watch other videos on Unchained TV.
Compare
Reach
Payload
Repeatability
Weight
Neura Robotics MAiRA Pro M
€39,500.00 excl. VAT.
1400 mm
15 kg
0.01 mm
53 kg
Neura Robotics LARA 10
€22,500.00 excl. VAT.
1000 mm
10 kg
0.02 mm
42 kg
Neura Robotics LARA 15
€24,900.00 excl. VAT.
1300 mm
15 kg
0.02 mm
55 kg
Neura Robotics LARA 3
€16,500.00 excl. VAT.
590 mm
3 kg
0.02 mm
17 kg
Reach
Payload
Repeatability
Weight
Neura Robotics MAiRA Pro M
€39,500.00 excl. VAT.
1400 mm
15 kg
0.01 mm
53 kg
Doosan Robotics A0912
€27,500.00 excl. VAT.
1200 mm
9 kg
0.05 mm
27 kg
KUKA LBR iisy 15 R930
€30,915.00 excl. VAT.
930 mm
15 kg
0.05 mm
43.2 kg
Kassow Robots KR1018
€37,500.00 excl. VAT.
1000 mm
18 kg
0.1 mm
34 kg
In the box
Robots
Teachpanel
Controller
Use case combination
Neura Robotics MAiRA Pro M
OnRobot 2FG7
Machine Tending
When it comes to machine loading, MAiRA is a pro. With its advanced artificial intelligence, ease of use, and intuitive programming, MAiRA is the perfect foundation for an endless array of machine loading solutions.
€43,362.00
excl. VAT.
Neura Robotics MAiRA Pro M
OnRobot RG2-FT
Quality Assurance
Build an advanced AI-powered quality control station with MAiRA, an advanced finger gripper and the INSPEKTO S70 inspection system!
€48,870.00
excl. VAT.
Neura Robotics MAiRA Pro M
Robotiq 2F-140
Prototyping
Thanks to its advanced cognitive functions, MAiRA is an ideal robot for prototyping, research and testing. Combine it with an easy-to-use gripper and a large workstation to take your prototyping to the next level.
€44,145.00
excl. VAT.
| Arm | ||
|---|---|---|
| Reach | 1,400 mm | |
| Payload | 15 kg | |
| Weight | 53 kg | |
| Performance | ||
|---|---|---|
| Max. linear TCP speed | 4.5 m/s | |
| Repeatability | 0.01 mm | |
| Min. Operating Temperature | 0 °C | |
| Max. Operating temperature | 50 °C | |
| I/O Ports | EtherCAT, GPIO, Modbus via M8 8-pin-A-M | IEC 61076-2-104 | |
| I/O Power Supply | 24V & 0,6A | |
| Joint Movement (Range: ° / Max Speed : ° /s) | ||
|---|---|---|
| J1 | -360 till 360 | ±120 |
| J2 | -120 till 120 | ±120 |
| J3 | -270 till 270 | ±150 |
| J4 | -150 till 150 | ±150 |
| J5 | -270 till 270 | ±200 |
| J6 | -160 till 160 | ±200 |
| J7 | -till 360 | ±360 |
| Other Features | ||
|---|---|---|
| IP classification | IP65 | |
| Mounting Direction | All directions | |
| Interfaces | EtherCAT, TCP/IP, Modbus TCP, GPIO, UDP, OPCUA | |
| Control Box | ||
|---|---|---|
| Dimension | 592 x 567 x 253mm | |
| Weight | 35 kg | |
| I/O ports | 21 safe IOs, 14 digital in, 8 digital out, 10 digital in/out, 8 analog in, 8 analog out | |
| Communication | EtherCAT, Ethernet TCP/IP / UDP, Modbus TCP , OPCUA | |
| Nominal power consumption | 3,200 W | |
| Supply voltage | 100-240 VAC | |
| Teach Panel | ||
|---|---|---|
| Dimension | 285 x 228 x 95mm | |
| Cable length | 5 | |
Neura Robotics MAiRA Pro M is part of Neura's MAiRA line, the world's first commercially available cognitive robots. Featuring fully integrated and newly developed sensor technology, as well as unprecedented integration of artificial intelligence into control and applications, MAiRA is opening up a new era of robotics. The robust and durable design combines the performance of a high-end machine with simple programming and endless possibilities for interaction - accessible for beginners and experts alike.
MAiRA tears down the boundaries between man and machine and brings both parties closer together for good.
AI-based object recognition
Inside MAiRA is AI-based object recognition, built around an integrated 3D camera and point cloud generation. This technology enables autonomous object processing and many other applications.
MAiRA is designed to support you. Consequently, it is designed so that anyone can program and use it.
Meet the family
There is more to discover with MAiRA, discover the rest of the series!
Download the Neura Robotics MAiRA Pro M Datasheet (EN) here!
Lade hier das Neura Robotics MAiRA Pro M Datenblatt (EN) herunter!
Download the Neura Robotics MAiRA Pro M STEP File here!
To place an order, send us an inquiry through the button at the top of the page or contact us through the chat.
