Neura Robotics MAiRA Pro S

|
Save

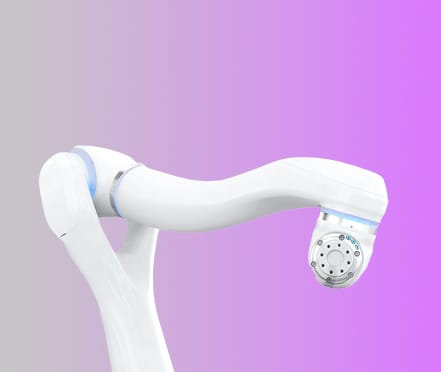

Neura Robotics MAiRA Pro S is part of the next generation of collaborative robots. MAiRA is different from other cobots in that it’s designed to assist you. With built-in audio and video sensors, MAiRA can recognize and understand objects it sees and commands when you talk to it. Because MAiRA is designed to be an assistant, not just a robotic arm, it can be programmed by users of all experience levels.
The MAiRA line of cobots is available in both 6-axis and 7-axis configurations and can be mounted in any position.
Reach

1,100 mm

Payload

18 kg

Technical Questions

€37,500.00 excl. VAT.

From 1.000,00 € a month with lease buy or installment.

Learn more
  • Overview
  • Specifications
  • Description
  • Downloads
  • FAQ
  • Similar products

Extreme Versatility

The integrated augmented intelligence enables MAiRA to be used for more applications than any other robot.

Robot Image

Intelligent

The integrated augmented intelligence enables MAiRA to be used for more applications than any other robot.

Robot Image

Robot Image

Robot Image

Featured on Unchained TV

Unfortunately, there are no use case videos yet for this product.
Click here to watch other videos on Unchained TV.

Compare

Reach

Payload

Repeatability

Weight

Robot Image

Neura Robotics MAiRA Pro S

€37,500.00 excl. VAT.

1100 mm

18 kg

0.01 mm

51 kg

Robot Image

Neura Robotics LARA 10

€22,500.00 excl. VAT.

1000 mm

10 kg

0.02 mm

42 kg

Robot Image

Neura Robotics LARA 15

€24,900.00 excl. VAT.

1300 mm

15 kg

0.02 mm

55 kg

Robot Image

Neura Robotics LARA 3

€16,500.00 excl. VAT.

590 mm

3 kg

0.02 mm

17 kg

Reach

Payload

Repeatability

Weight

Robot Image

Neura Robotics MAiRA Pro S

€37,500.00 excl. VAT.

1100 mm

18 kg

0.01 mm

51 kg

Robot Image

Rainbow Robotics RB10-1300

€33,000.00 excl. VAT.

1300 mm

10 kg

0.05 mm

37 kg

Robot Image

Neura Robotics LARA 15

€24,900.00 excl. VAT.

1300 mm

15 kg

0.02 mm

55 kg

Robot Image

Universal Robots UR10e

€38,928.00 excl. VAT.

1300 mm

12.5 kg

0.05 mm

33.5 kg

In the box

Robot Image

Robot

Robot Image

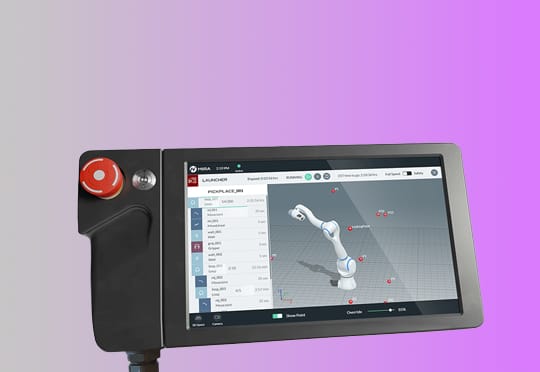

Teachpanel

Robot Image

Controller

Use case combination

Robot Image
Cobot, Neura Robotics

Neura Robotics MAiRA Pro S

€37,500.00 excl. VAT.
+
Robot Image
Finger Grippers, OnRobot

OnRobot 2FG7

€3,089.60 - €4,243.20 excl. VAT.

Machine Tending

When it comes to machine loading, MAiRA is a pro. With its advanced artificial intelligence, ease of use, and intuitive programming, MAiRA is the perfect foundation for an endless array of machine loading solutions.

€40,589.60

excl. VAT.

Robot Image
Cobot, Neura Robotics

Neura Robotics MAiRA Pro S

€37,500.00 excl. VAT.
+
Robot Image
Finger Grippers, OnRobot

OnRobot RG2-FT

€7,496.00 - €8,649.60 excl. VAT.

Quality Assurance

Build an advanced AI-powered quality control station with MAiRA, an advanced finger gripper and the INSPEKTO S70 inspection system!

€44,996.00

excl. VAT.

Robot Image
Cobot, Neura Robotics

Neura Robotics MAiRA Pro S

€37,500.00 excl. VAT.
+
Robot Image
Finger Grippers, Robotiq

Robotiq 2F-140

€4,645.00 excl. VAT.

Prototyping

Thanks to its advanced cognitive functions, MAiRA is an ideal robot for prototyping, research and testing. Combine it with an easy-to-use gripper and a large workstation to take your prototyping to the next level.

€42,145.00

excl. VAT.

Arm
Reach1,100 mm
Payload18 kg
Weight51 kg
Performance
Max. linear TCP speed4.5 m/s
Repeatability0.01 mm
Min. Operating Temperature0 °C
Max. Operating temperature50 °C
I/O PortsEtherCAT, GPIO, Modbus via M8 8-pin-A-M | IEC 61076-2-104
I/O Power Supply24V & 0,6A
Joint Movement (Range: ° / Max Speed : ° /s)
J1-360 till 360±120
J2-120 till 120±120
J3-270 till 270±150
J4-150 till 150±150
J5-270 till 270±200
J6-160 till 160±200
J7-till 360±360
Other Features
IP classificationIP65
Mounting DirectionAll directions
InterfacesEtherCAT, TCP/IP, Modbus TCP, GPIO, UDP, OPCUA
Control Box
Dimension592mmx567mmx253mm
Weight35 kg
I/O ports20 safe IOs, 14 digital in, 8 digital out, 10 digital in/out, 8 analog in, 8 analog out
Nominal power consumption3,200 W
Supply voltage100-240 VAC
Teach Panel
Dimension285x228x95 mm
Cable length5



Neura Robotics MAiRA Pro S is part of Neura's MAiRA line, the world's first commercially available cognitive robots. Featuring fully integrated and newly developed sensor technology, as well as unprecedented integration of artificial intelligence into control and applications, MAiRA is opening up a new era of robotics. The robust and durable design combines the performance of a high-end machine with simple programming and endless possibilities for interaction - accessible for beginners and experts alike.
MAiRA tears down the boundaries between man and machine and brings both parties closer together for good.

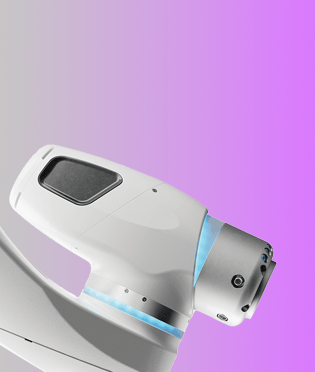

AI-based object recognition
Inside MAiRA is AI-based object recognition, built around an integrated 3D camera and point cloud generation. This technology enables autonomous object processing and many other applications.
MAiRA is designed to support you. Consequently, it is designed so that anyone can program and use it.

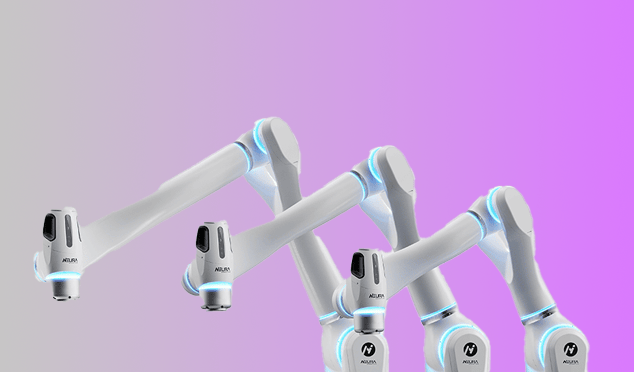

Meet the family
There is more to discover with MAiRA, discover the rest of the series!
MAiRA - Pro M (reach: 1400 mm, payload: 15 kg)

MAiRA - Pro L (reach: 1600 mm, payload: 12 kg)


To place an order, send us an inquiry through the button at the top of the page or contact us through the chat.

Unchained Robotics is the biggest marketplace for all things automation. We have over 36 brands with 9 different categories such as Cobots, Grippers, Cameras, Starter-kits, End-of-Arm-Accessories, Teaching-kits, Turnkey Solution, Cobot-Base and even
Services. For more information, check out our About page.
