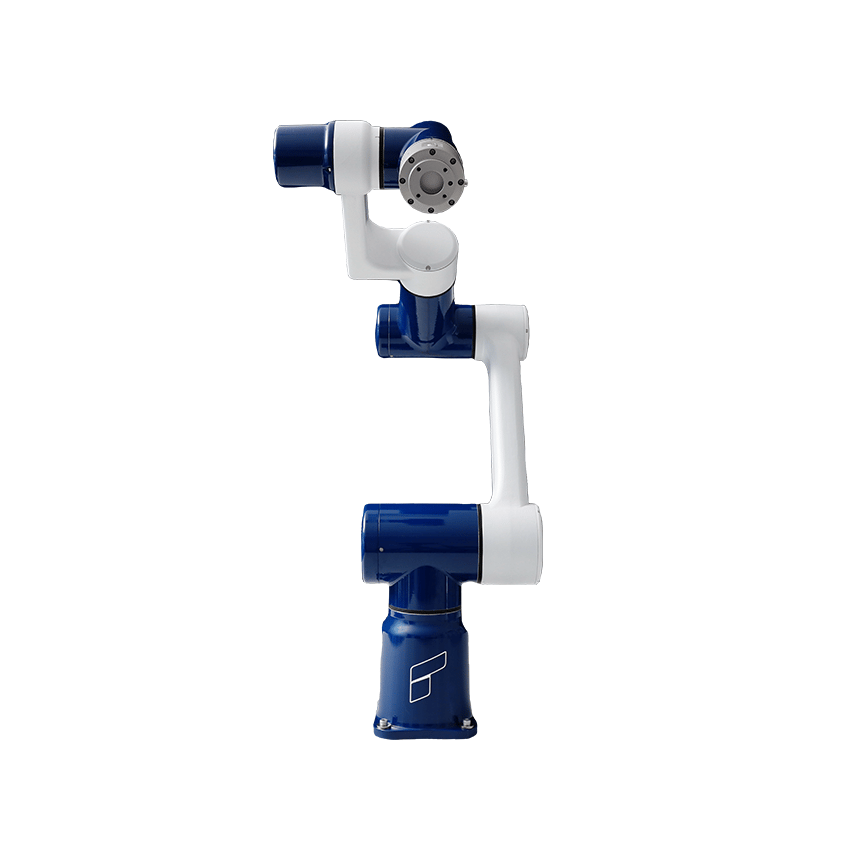

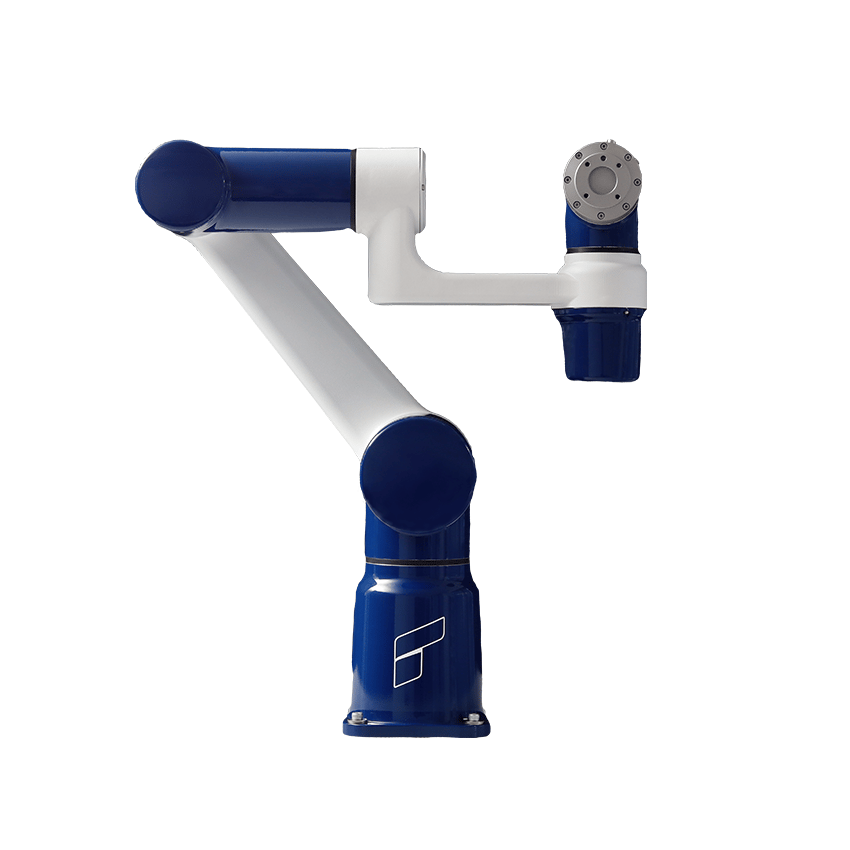

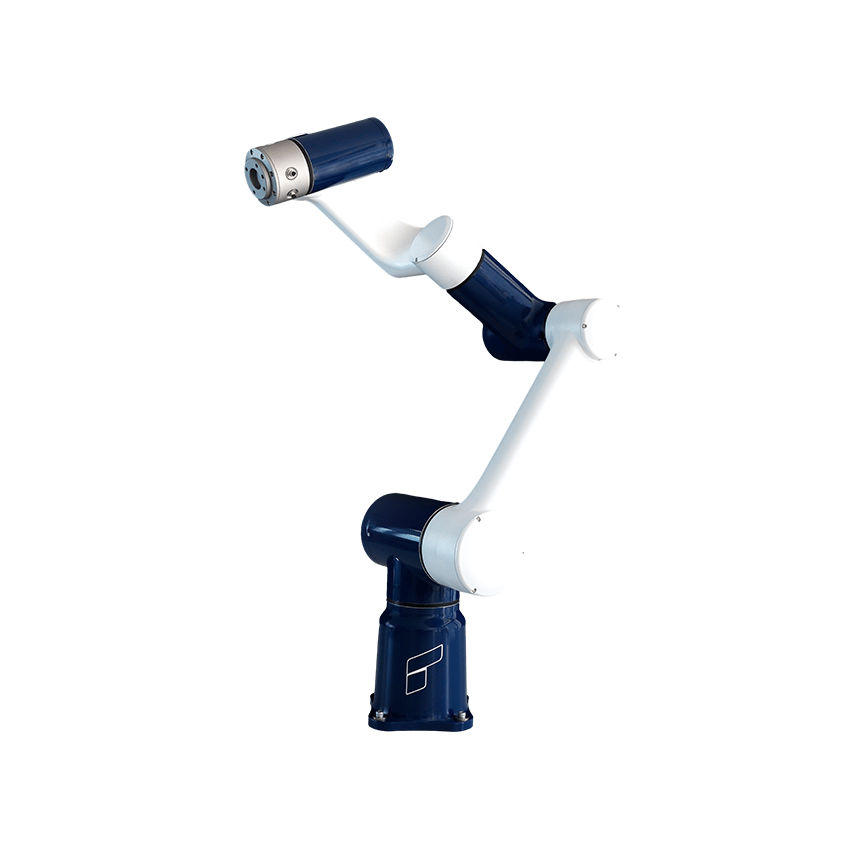

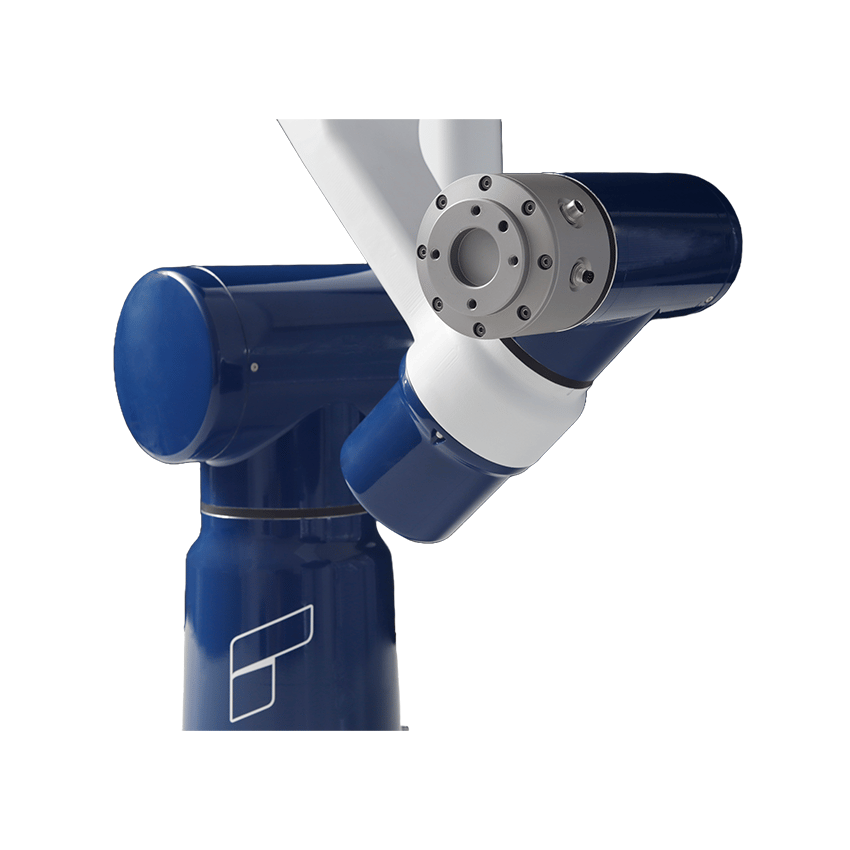

YardStick Robotics YARO-1310

|
Save
The YARO-1310 from YardStick Robotics is a six-axis cobot with a 10 kg payload and a 1.3 m reach, designed for demanding environments. It offers IP67/IP69 protection, a repeatability of less than 0.1 mm and integration options via Modbus RTU, Ethernet and ROS 2.
Reach

1,300 mm

Payload

10 kg

Technical Questions

€43,000.00 excl. VAT.

From 1.000,00 € a month with lease buy or installment.

Lease & buy guide
  • Specifications
  • Overview
  • Description
  • Downloads
  • FAQ
  • Similar products

Featured on Unchained TV

Unfortunately, there are no use case videos yet for this product.
Browse other robotics videos on Unchained TV.

Arm
Reach1,300 mm
Payload10 kg
Weight45 kg

Performance
Max. linear TCP speed1 m/s
Repeatability0.1 mm

Joint Movement (Range: ° / Max Speed : ° /s)
J1-360 till 360±162
J2-360 till 360±162
J3-165 till 165±228
J4-360 till 360±270
J5-360 till 360±276
J6-360 till 360±276
J7 --

Other Features
IP classificationIP67 & IP69
Mounting DirectionAll directions

Control Box
Dimension245 x 520 x 480 mm
Weight13.5 kg
IP classificationIP65

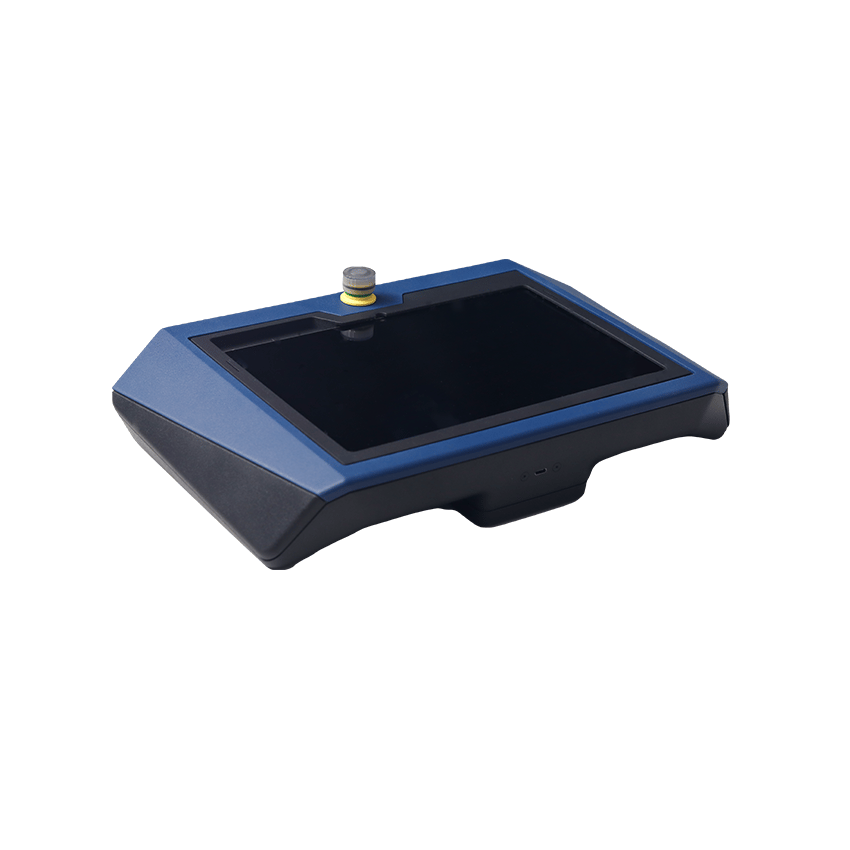

Teach Panel
Dimension380 x 240 x 70 mm
IP classificationIP67

The YARO-1310 from YardStick Robotics is a collaborative robot designed for automation tasks in demanding industrial environments. With a payload of 10 kg and a reach of 1,300 mm, it is suitable for applications where components, tools or end-effectors need to be moved across a larger working area.

The robot is designed for use in changing and harsh environmental conditions. These include, amongst other things, dust, water, vibrations and temperatures ranging from −20 to 50 °C. This means it can also be used in areas where many conventional cobots are only of limited suitability.

The YARO-1310 can be adapted to different tasks and operating locations. Depending on the application, additional functions such as object recognition, force control, vibration control or specialised sensor technology can be integrated.

Typical areas of application include inspection, handling and maintenance tasks in industry, agriculture, energy supply and security applications, as well as in hard-to-reach or potentially hazardous environments.

To place an order, send us an inquiry through the button at the top of the page or contact us through the chat.
