Marketplace
1,100 mm
5 kg
ROI Calculator
€35,000.00 excl. VAT.
From 1.000,00 € a month with lease buy or installment.
- Specifications
- Overview
- Compare
- Description
- Downloads
- FAQ
- Similar products
Featured on Unchained TV
Unfortunately, there are no use case videos yet for this product. Browse other robotics videos on Unchained TV.
Compare
Reach
Payload
Repeatability
Weight
Reach
Payload
Repeatability
Weight
| Arm | ||
|---|---|---|
| Reach | 1,100 mm | |
| Payload | 5 kg | |
| Weight | 28 kg | |
| Performance | ||
|---|---|---|
| Max. linear TCP speed | 1 m/s | |
| Repeatability | 0.1 mm | |
| Joint Movement (Range: ° / Max Speed : ° /s) | ||
|---|---|---|
| J1 | -360 till 360 | ±228 |
| J2 | -360 till 360 | ±228 |
| J3 | -165 till 165 | ±270 |
| J4 | -360 till 360 | ±420 |
| J5 | -360 till 360 | ±420 |
| J6 | -360 till 360 | ±420 |
| J7 | - | - |
| Other Features | ||
|---|---|---|
| IP classification | IP67 & IP69 | |
| Mounting Direction | All directions | |
| Control Box | ||
|---|---|---|
| Dimension | 245 x 520 x 480 mm | |
| Weight | 13.5 kg | |
| IP classification | IP65 | |

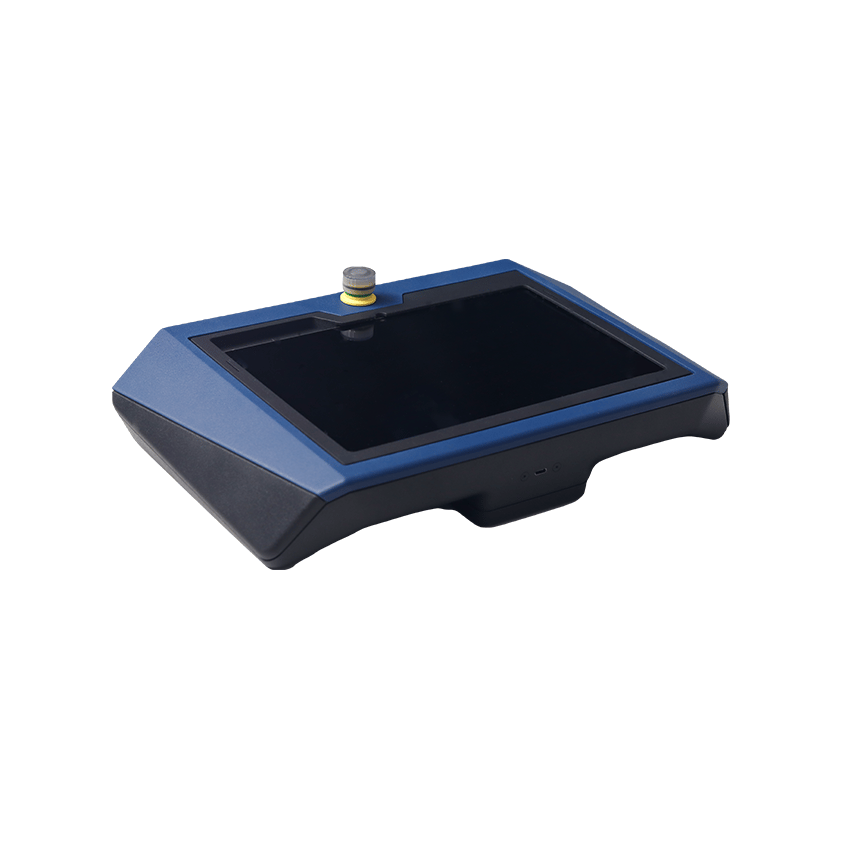

| Teach Panel | ||
|---|---|---|
| Dimension | 380 x 240 x 70 mm | |
| IP classification | IP67 | |

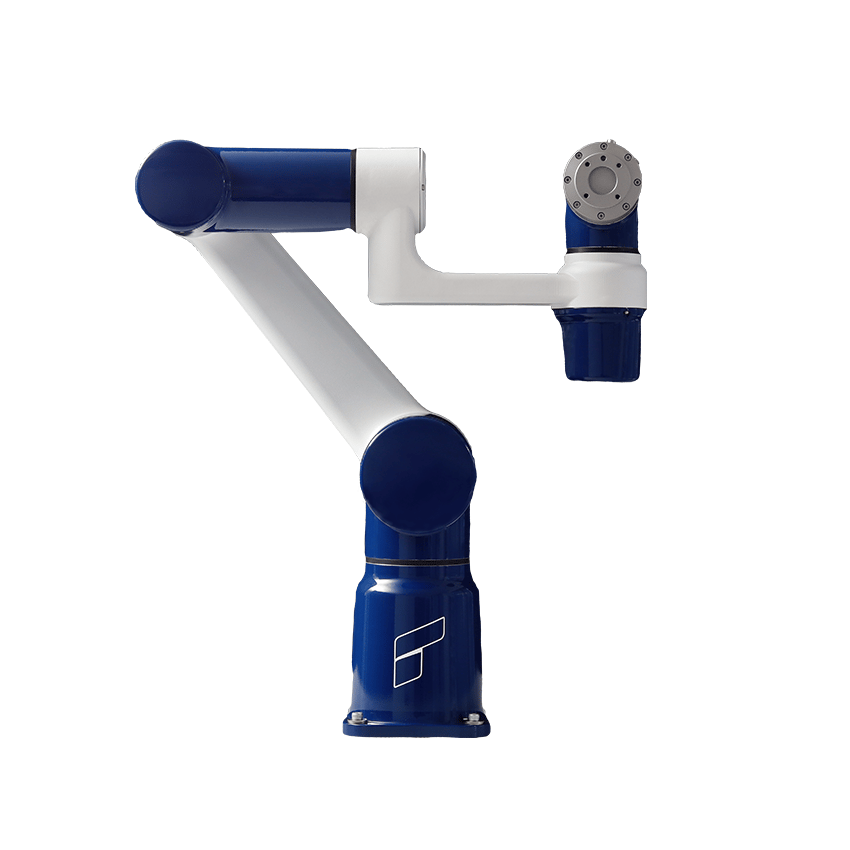

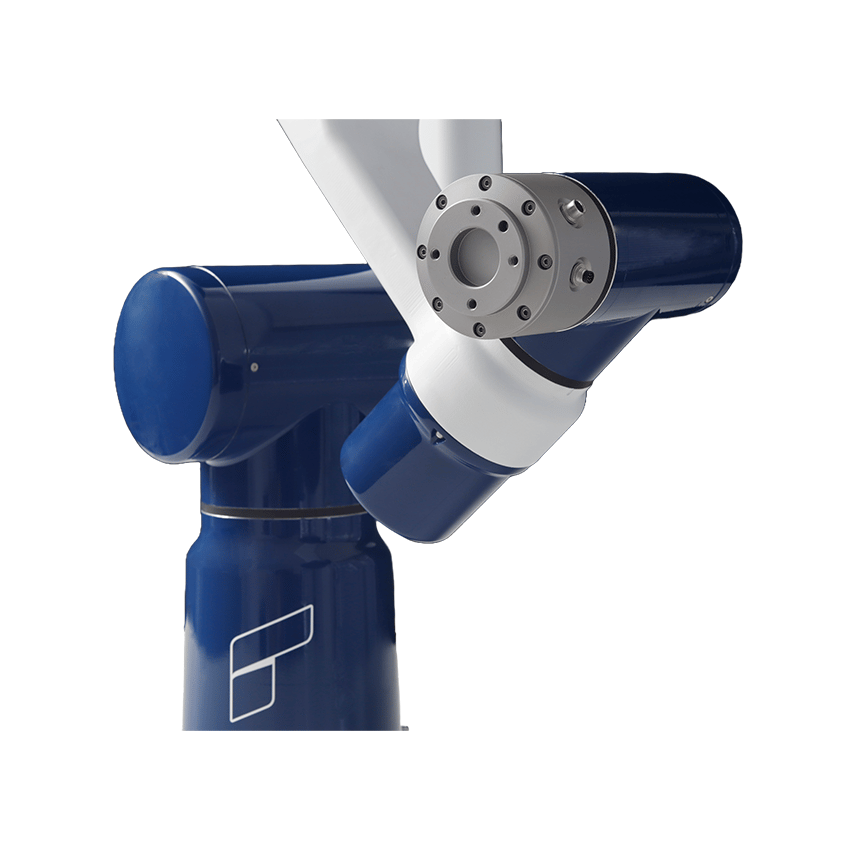

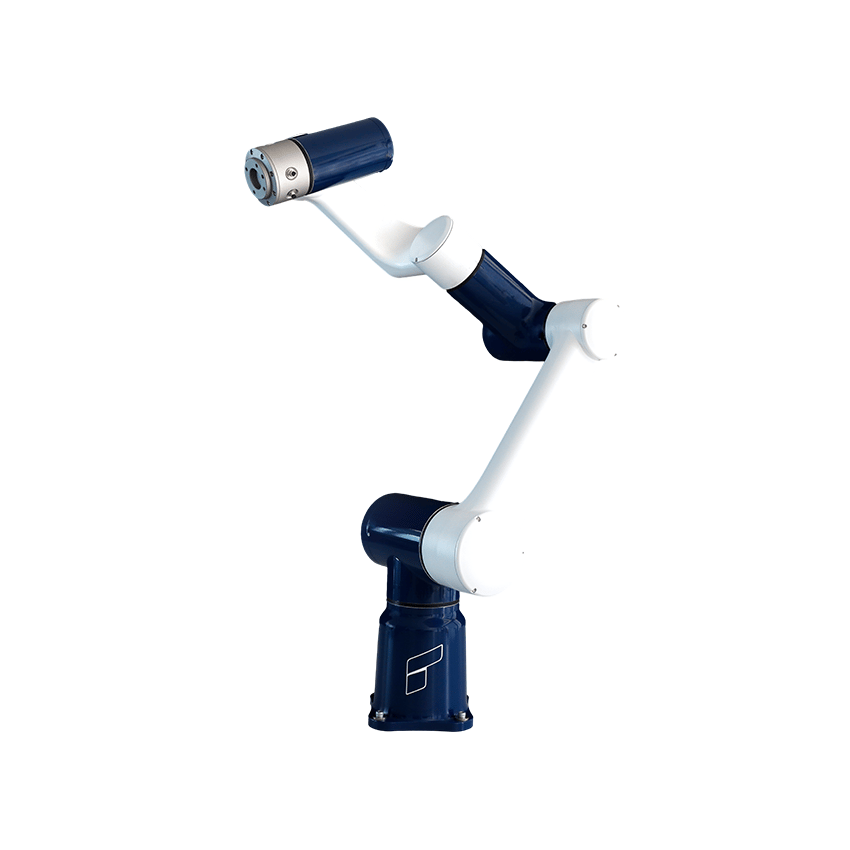

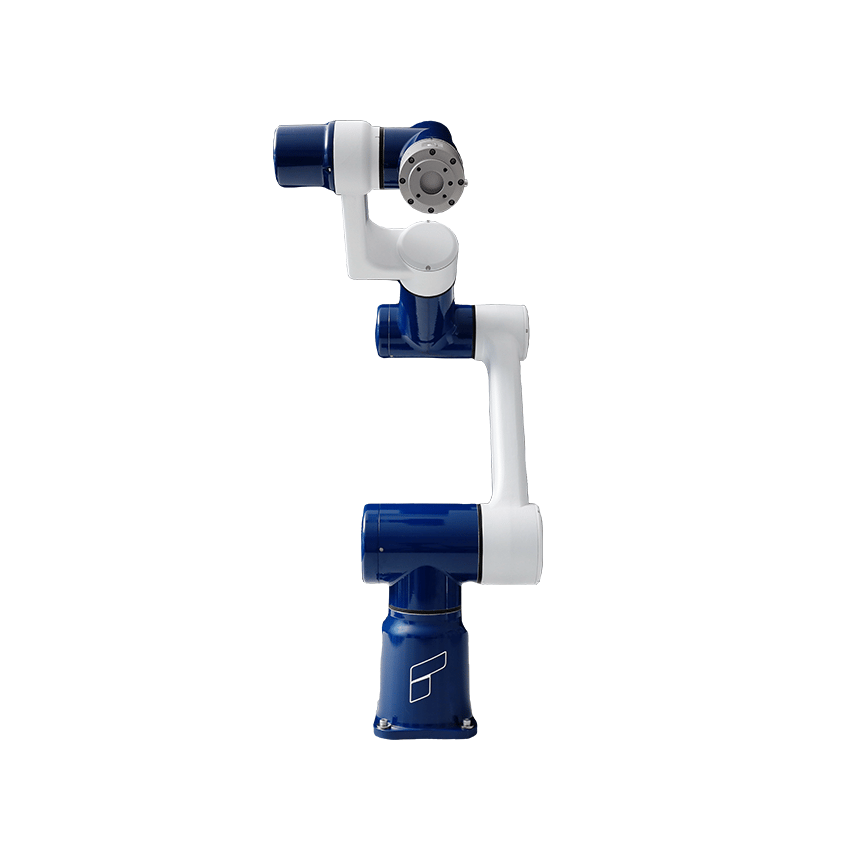

The YARO-1105 from YardStick Robotics is a collaborative robot designed for automation tasks in demanding industrial environments. With a payload of 5 kg and a reach of 1,100 mm, it is suitable for applications where workpieces, tools or end-effectors need to be guided across a larger working area.
The model is designed for use in harsh and variable environments. These include, amongst other things, dust, water, vibrations and temperatures ranging from −20 to 50 °C. This means that the YARO-1105 can also be used in areas where conventional cobots are only of limited suitability.
Depending on the task, the robot can be adapted to meet different requirements. Functions such as object recognition, force control, vibration control or additional sensor technology can also be integrated.
Potential areas of application include inspection, handling and maintenance tasks in industry, agriculture, energy supply and security applications, as well as work in hard-to-reach or potentially hazardous environments.
To place an order, send us an inquiry through the button at the top of the page or contact us through the chat.
Unchained Robotics is the biggest marketplace for all things automation. We have over 36 brands with 9 different categories such as Cobots, Grippers, Cameras, Starter-kits, End-of-Arm-Accessories, Teaching-kits, Turnkey Solution, Cobot-Base and even
Services. For more information, check out our About page.
