800 mm
20 kg
ROI Calculator
€49,000.00 excl. VAT.
From 1.000,00 € a month with lease buy or installment.
- Specifications
- Overview
- Compare
- Description
- Downloads
- FAQ
- Similar products
Featured on Unchained TV
Unfortunately, there are no use case videos yet for this product. Browse other robotics videos on Unchained TV.
Compare
Reach
Payload
Repeatability
Weight
Reach
Payload
Repeatability
Weight
| Arm | ||
|---|---|---|
| Reach | 800 mm | |
| Payload | 20 kg | |
| Weight | 36 kg | |
| Performance | ||
|---|---|---|
| Max. linear TCP speed | 1 m/s | |
| Repeatability | 0.1 mm | |
| Joint Movement (Range: ° / Max Speed : ° /s) | ||
|---|---|---|
| J1 | -360 till 360 | ±162 |
| J2 | -360 till 360 | ±162 |
| J3 | -165 till 165 | ±228 |
| J4 | -360 till 360 | ±270 |
| J5 | -360 till 360 | ±276 |
| J6 | -360 till 360 | ±276 |
| J7 | - | - |
| Other Features | ||
|---|---|---|
| IP classification | IP67 & IP69 | |
| Mounting Direction | All directions | |
| Control Box | ||
|---|---|---|
| Dimension | 245 x 520 x 480 mm | |
| Weight | 13.5 kg | |
| IP classification | IP65 | |

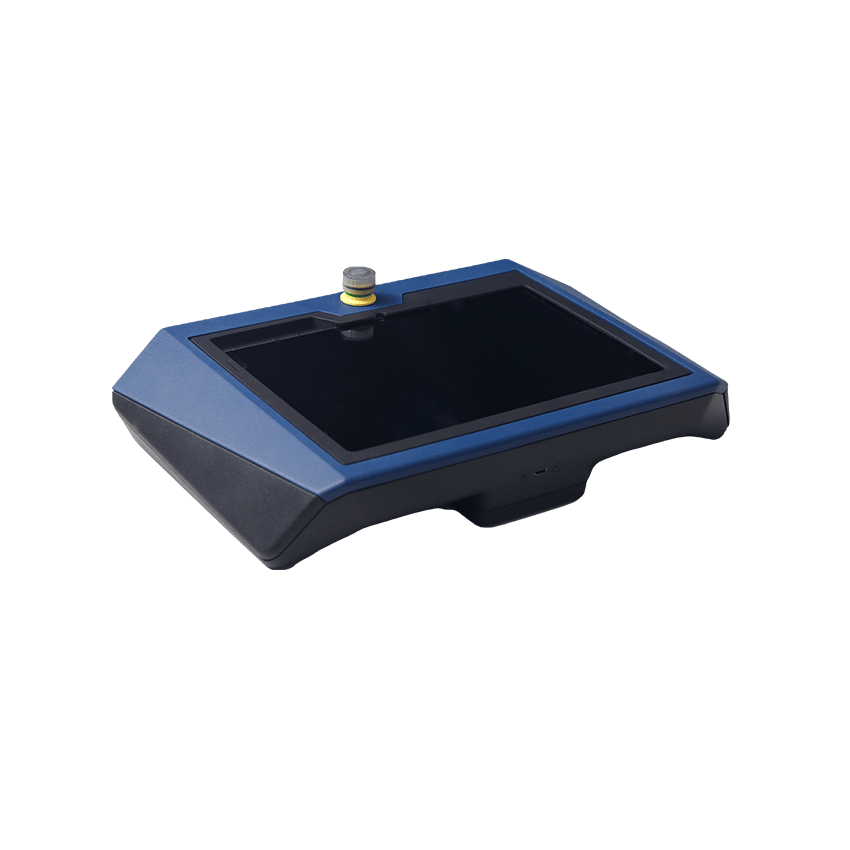

| Teach Panel | ||
|---|---|---|
| Dimension | 380 x 240 x 70 mm | |
| IP classification | IP67 | |

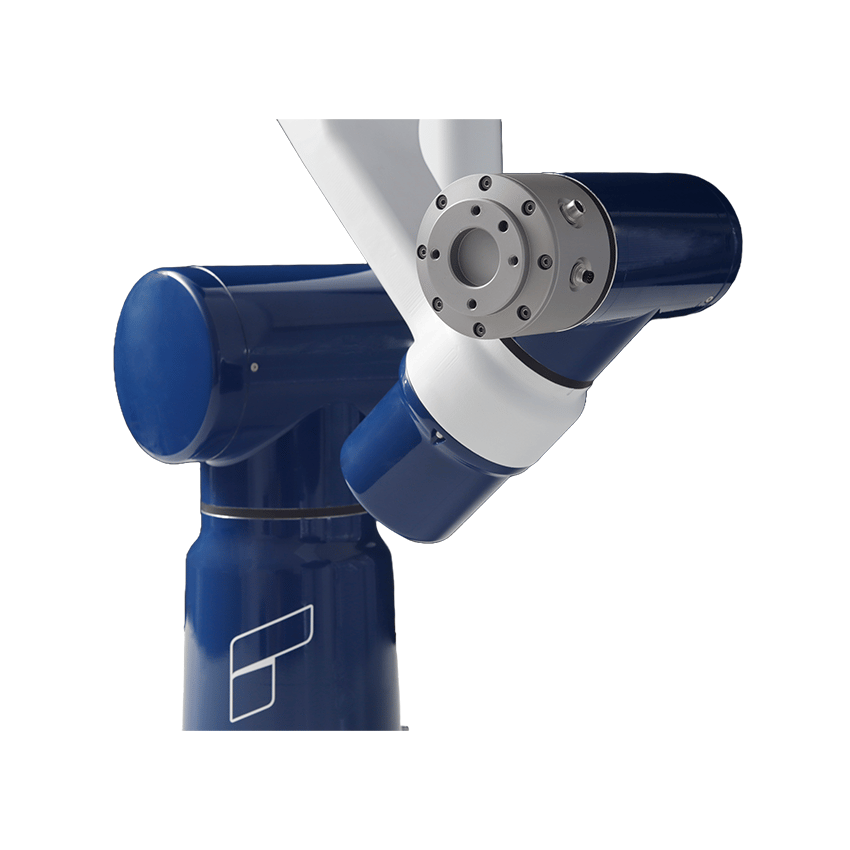

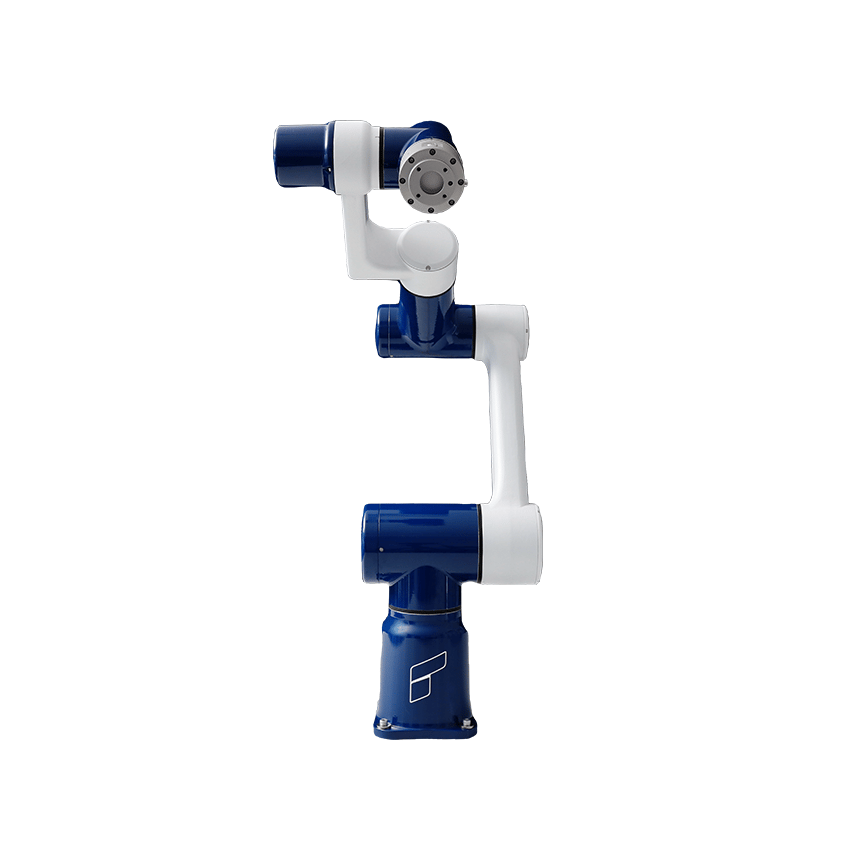

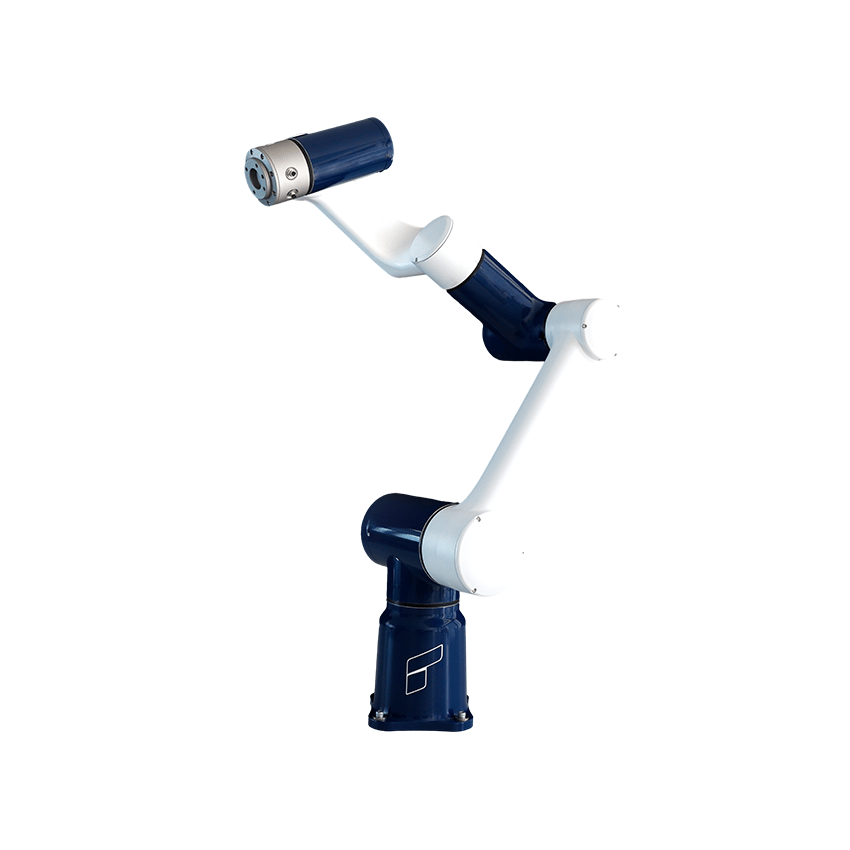

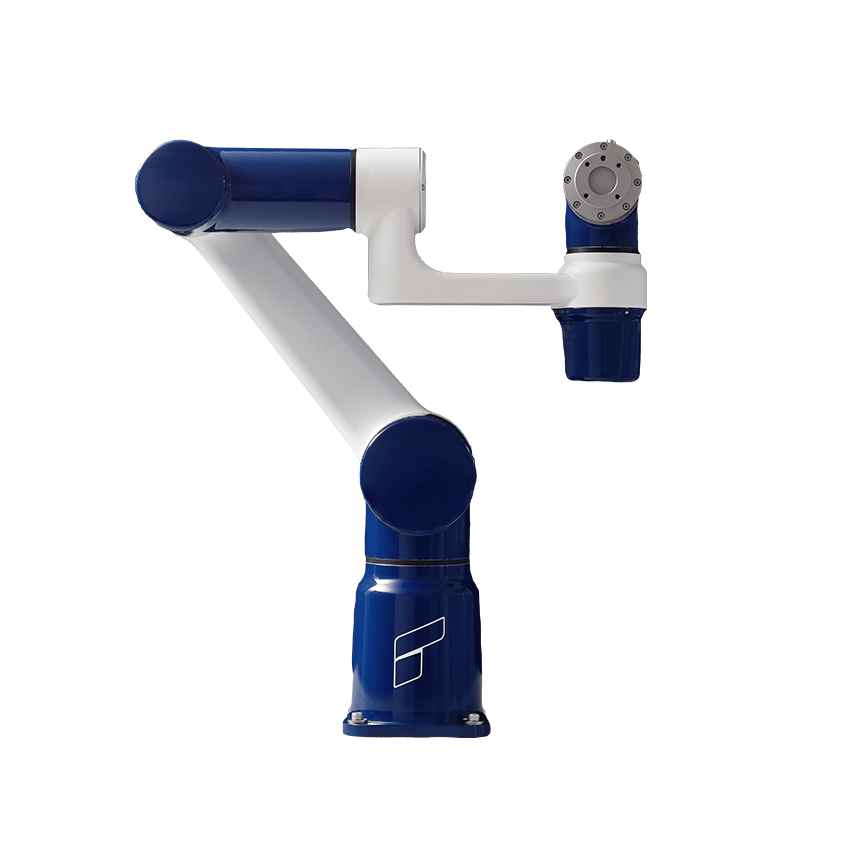

The YARO-0820 from YardStick Robotics is a collaborative robot designed for automation tasks in demanding industrial environments. With a payload of 20 kg, it is suitable for applications involving the handling of heavy workpieces, tools or end-effectors.
The robot is designed for use in changing and harsh environmental conditions. These include, amongst other things, dust, water, vibrations and wide temperature ranges (-20 to 50°C). This means it can also be used in areas where many conventional cobots are only of limited suitability.
The YARO-0820 can be adapted to different tasks and operating locations. Depending on the application, additional functions such as object recognition, force control, vibration control or specialised sensor technology can be integrated.
Typical areas of application include inspection, handling and maintenance tasks in industry, agriculture, energy supply and security applications, as well as in hard-to-reach or potentially hazardous environments.
To place an order, send us an inquiry through the button at the top of the page or contact us through the chat.
