Kawasaki Robotics RS020N
ROI Calculator
€36,300.00 excl. VAT.
From 1.000,00 € a month with lease buy or installment.
- Overview
- Specifications
- Description
- Downloads
- FAQ
- Similar products
Featured on Unchained TV
Unfortunately, there are no use case videos yet for this product. Click here to watch other videos on Unchained TV.
| Arm | ||
|---|---|---|
| Reach | 1,730 mm | |
| Payload | 20 kg | |
| Weight | 230 kg | |
| Performance | ||
|---|---|---|
| Repeatability | 0.04 mm | |
| Min. Operating Temperature | 0 °C | |
| Max. Operating temperature | 45 °C | |
| Joint Movement (Range: ° / Max Speed : ° /s) | ||
|---|---|---|
| J1 | -180 till 180 | ±190 |
| J2 | -105 till 155 | ±205 |
| J3 | -163 till 150 | ±210 |
| J4 | -270 till 270 | ±400 |
| J5 | -145 till 145 | ±360 |
| J6 | -360 till 360 | ±610 |
| J7 | - | - |
| Other Features | ||
|---|---|---|
| IP classification | IP65 | |
| Mounting Direction | Boden, Decke | |
| Control Box | ||
|---|---|---|
| Dimension | 550 x 580 x 278 mm | |
| Weight | 40 kg | |
| I/O ports | 2x Ethernet 2x USB 2x RS-232C | |
| I/O power supply | AC 200-220 V 3-Phase | |
| IP classification | IP54 | |
| Teach Panel | ||
|---|---|---|
| Cable length | 5 | |

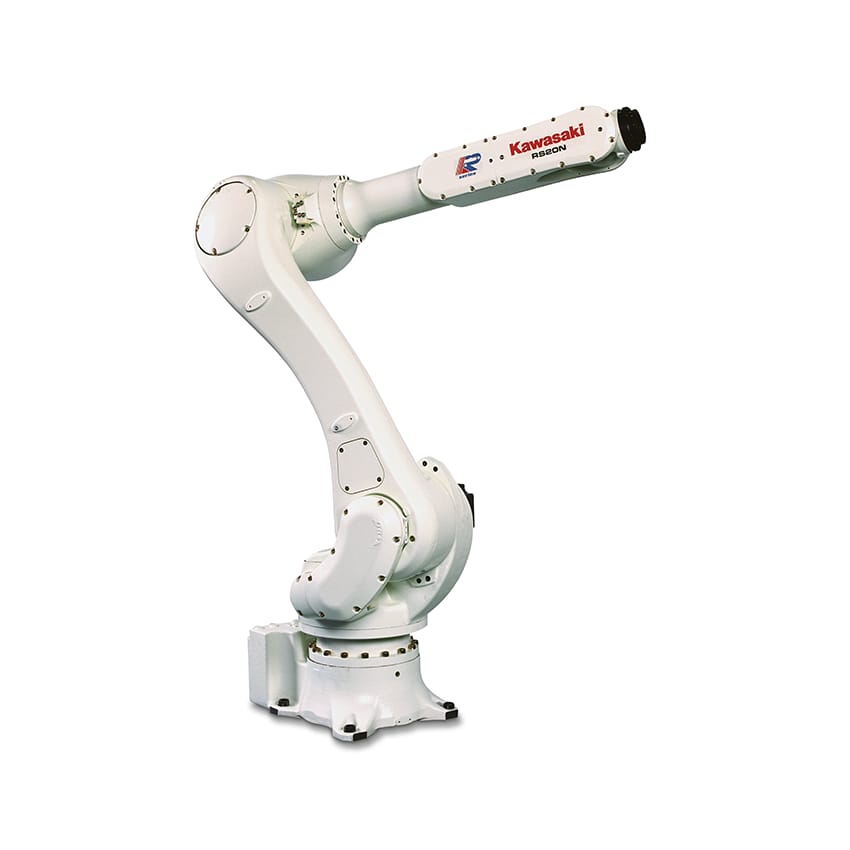

The Kawasaki Robotics RS020N is a large, powerful industrial robot with a payload capacity of 20kg and a reach of 1725 mm. The R series robots from Kawasaki are ideal for a wide range of applications in a variety of industries. Assembly, material handling, machine tending, dispensing and material removal are just some of the possible applications that the RS020N can take on.
The R series
The R-Series from Kawasaki Robotics is a range of universal robots for small to medium payloads. Kawasaki's technology and expertise are reflected in the R-Series, which offers outstanding performance in its class. The compact models offer higher speed and an extended working range. A diverse product range is available to meet the needs of customers in different applications and industries.
Download the Kawasaki Robotics lineup Brochure (DE) here!
Download the Kawasaki RS020N manual (DE) here!
Download the Kawasaki RS020N step file here!
To place an order, send us an inquiry through the button at the top of the page or contact us through the chat.
