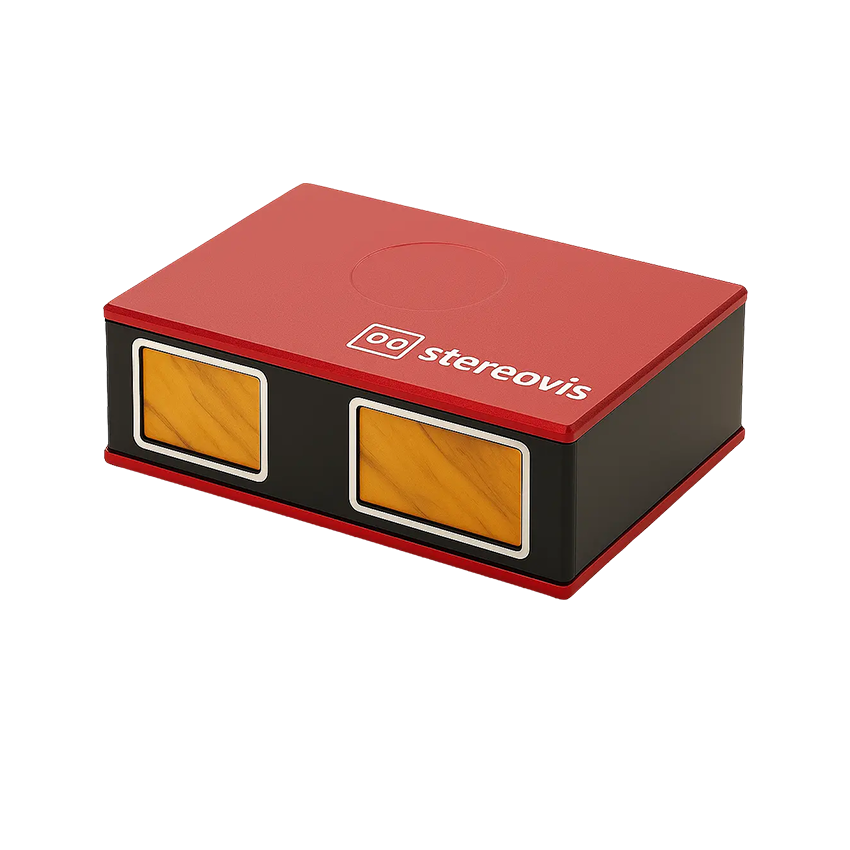

The Stereovis M03 is a high-performance stereo camera with an integrated processor that has been specially developed for industrial applications such as bin picking, machine tending or the automation of logistical processes. Thanks to its wide field of view, it is particularly suitable for detecting large parts or container contents.


Thanks to the fully embedded processing unit based on a Jetson Nano, the M03 does not require an external PC system and still delivers real-time 3D data such as point clouds and object positions at up to 30 frames per second.


The robust, IP65-protected aluminium construction ensures reliable use even in demanding industrial environments.


The M03 is equipped with an AI-capable SDK that includes functions such as calibration and correction of the object position. Developers can access the camera using common programming languages such as Python, C++ and C#, and integration into ROS is also possible without any problems.


Thanks to support for all common robot arms via TCP/IP, the M03 is immediately ready for automated applications in production and inspection.

Technical data

• Processor: NVIDIA Jetson Nano
• Interface: Gigabit Ethernet
• Weight: 3.0 kg
• Current: 12V / 8A
• Operating temperature: -10 - 50°C
• Dimensions: 310 x 190 x 78 mm

The M03 is available in three different versions which differ in their working distance and field of view, but are structurally identical.

Version 1

• Working distance: 1500 mm
• Field of view: 1800 x 930 mm
• Depth accuracy: 1 mm
• Z-axis-range: 1300 - 1700 mm



Version 2

• Working distance: 2000 mm
• Field of view: 2400 x 1250 mm
• Depth accuracy: 3 mm
• Z-axis range: 1700 - 2300 mm



Version 3

• Working distance: 2500 mm
• Field of view: 3000 x 1560 mm
• Depth accuracy: 5 mm
• Z-axis range: 2000 - 3000 mm
