€37,798.00 excl. VAT.
From 1.000,00 € a month with lease buy or installment.
- Specifications
- Overview
- Description
- Downloads
- FAQ
- Similar products
Featured on Unchained TV
Unfortunately, there are no use case videos yet for this product. Browse other robotics videos on Unchained TV.
| Arm | ||
|---|---|---|
| Reach | 1,840 mm | |
| Payload | 35 kg | |
| Weight | 237 kg | |
| Performance | ||
|---|---|---|
| Repeatability | 0.03 mm | |
| Min. Operating Temperature | 0 °C | |
| Max. Operating temperature | 45 °C | |
| Joint Movement (Range: ° / Max Speed : ° /s) | ||
|---|---|---|
| J1 | -185 till 185 | ±200 |
| J2 | -185 till 65 | ±200 |
| J3 | -120 till 178 | ±210 |
| J4 | -180 till 180 | ±400 |
| J5 | -125 till 125 | ±400 |
| J6 | -358 till 358 | ±460 |
| J7 | - | - |
| Other Features | ||
|---|---|---|
| IP classification | IP54 | |
| Mounting Direction | All directions | |

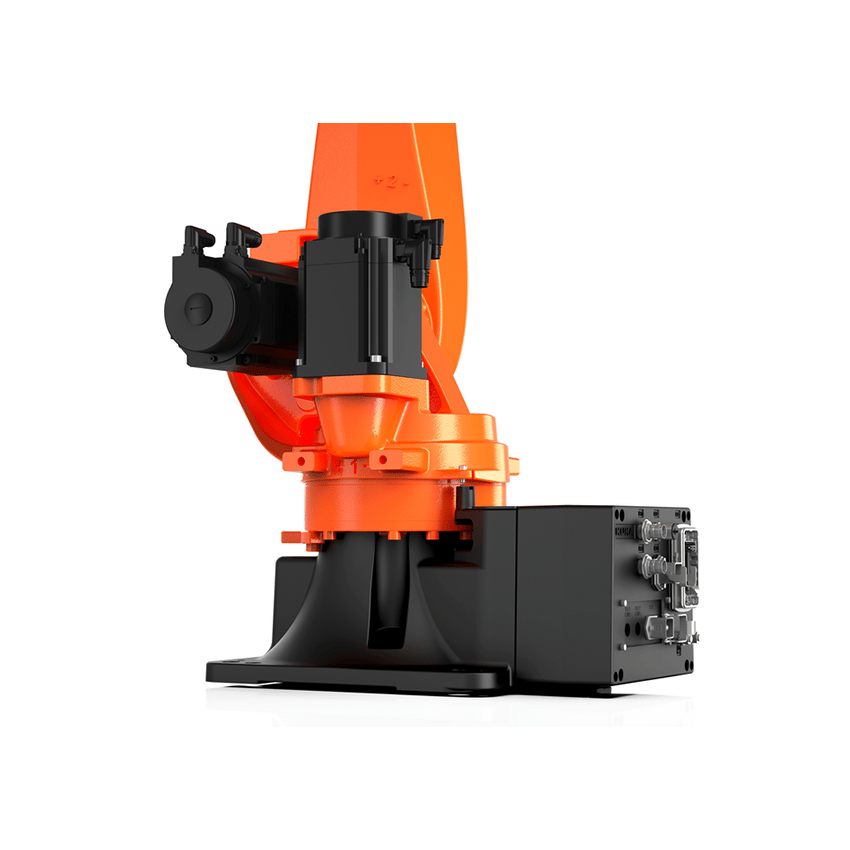

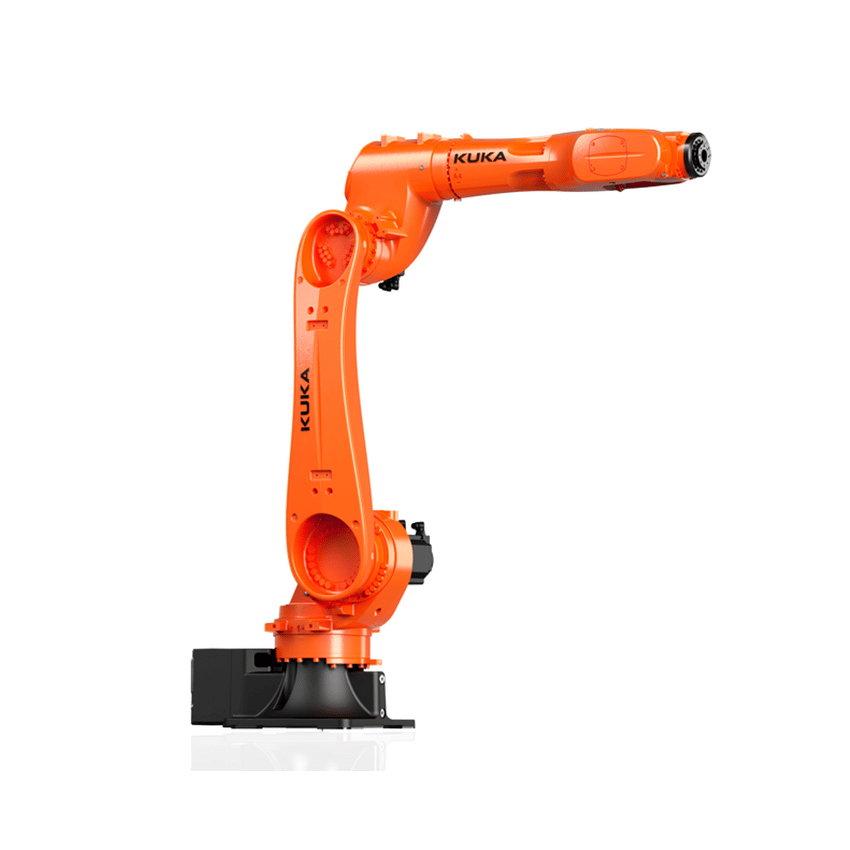

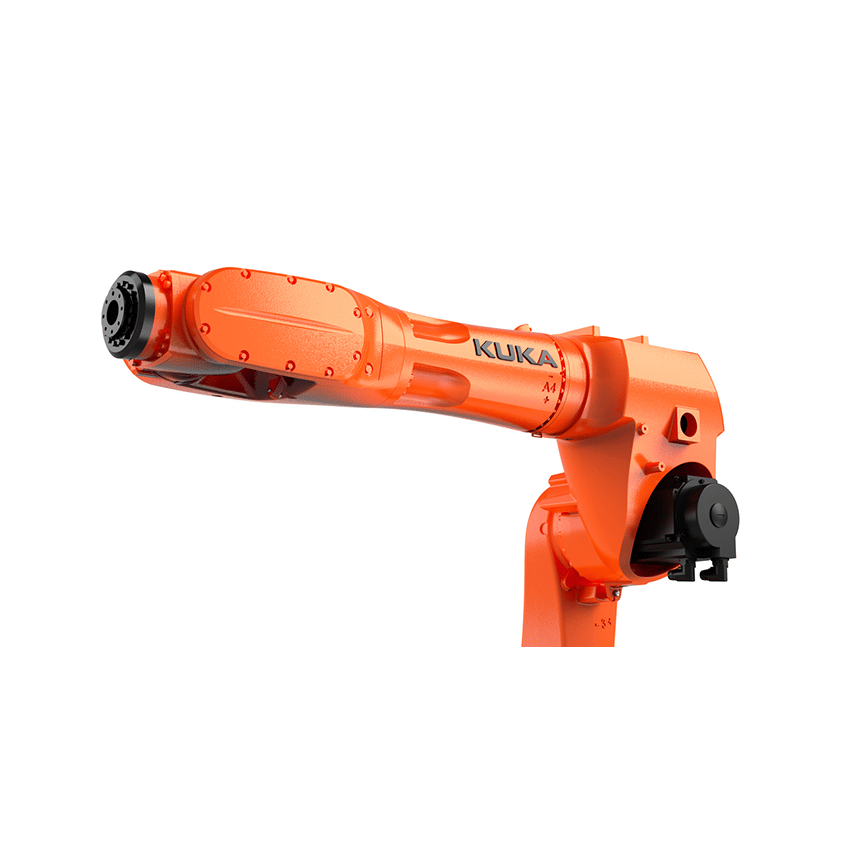

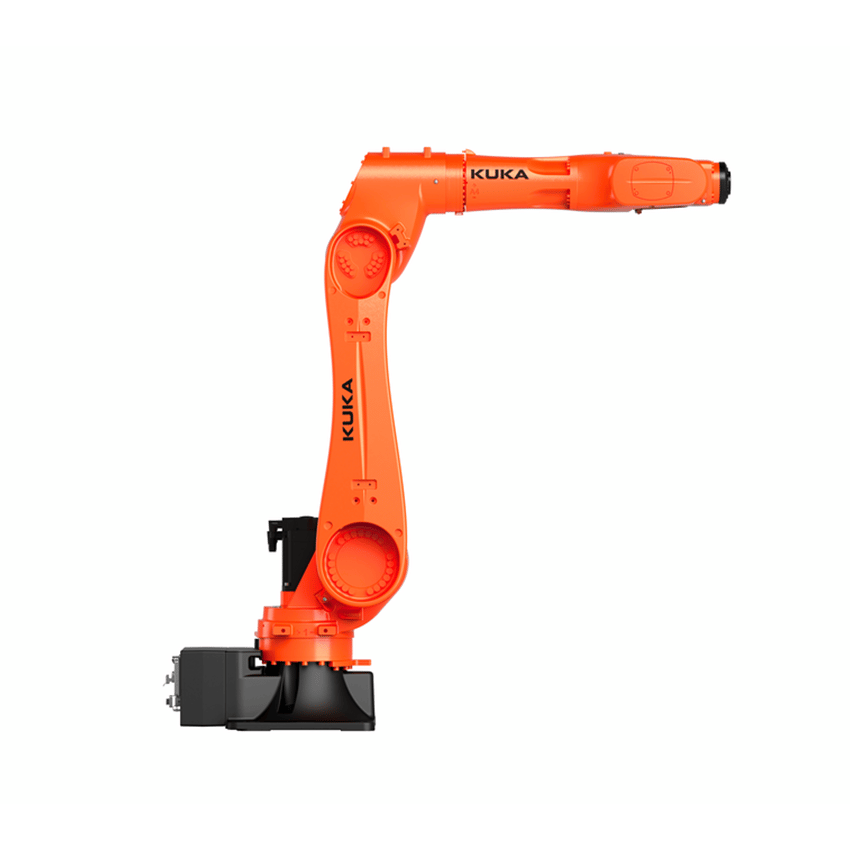

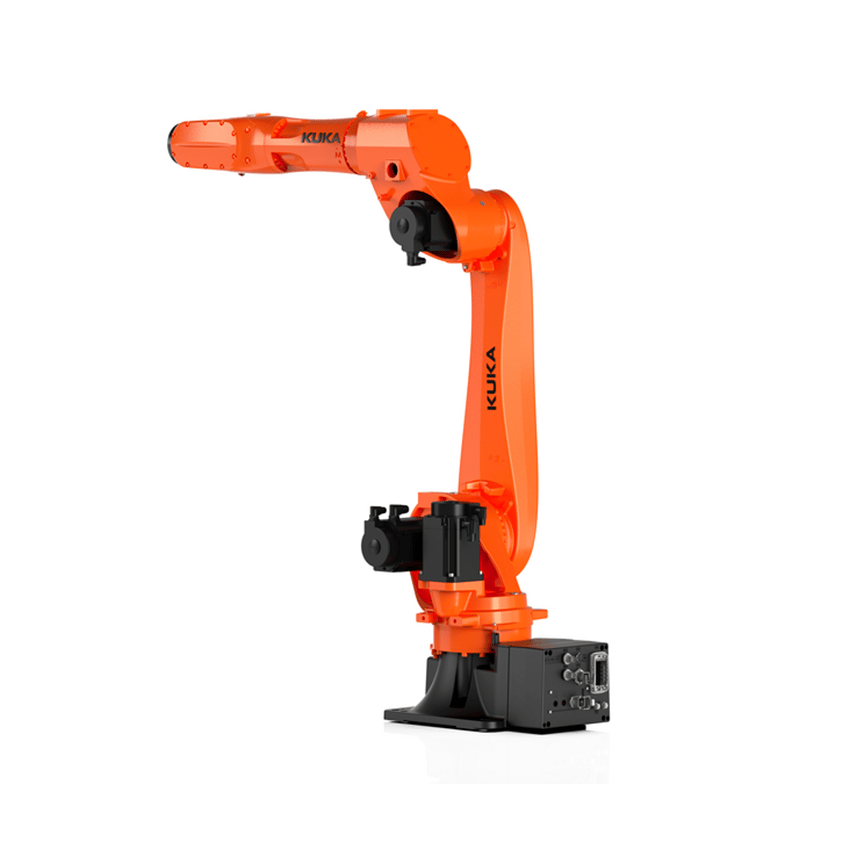

The KUKA KR 35 R1840-3 is a six-axis industrial robot from the KR CYBERTECH-3 product family. With a reach of 1,840 mm and a rated payload of 35 kg, it is designed for a variety of automation tasks. Under suitable conditions, it can handle loads of up to 49 kg.
The robot can be mounted on the floor, ceiling, wall or at any angle. Its positional repeatability of ±0.03 mm ensures consistent movement sequences in industrial processes. The robot gripper is rated to protection class IP67.
Applications include parts handling, assembly, machine tending, palletising and packaging, as well as various machining processes. This means the KR 35 R1840-3 can be used in sectors such as automotive manufacturing, electronics production and mechanical engineering.
Download the KUKA KR 35 R1840-3 data sheet (DE) here!
Download the KUKA KR 35 R1840-3 STEP file here!
To place an order, send us an inquiry through the button at the top of the page or contact us through the chat.
