Kawasaki Robotics RS080N
ROI Calculator
€48,300.00 excl. VAT.
From 1.000,00 € a month with lease buy or installment.
- Overview
- Specifications
- Description
- Downloads
- FAQ
- Similar products
Featured on Unchained TV
Unfortunately, there are no use case videos yet for this product. Click here to watch other videos on Unchained TV.
| Arm | ||
|---|---|---|
| Reach | 2,100 mm | |
| Payload | 80 kg | |
| Weight | 555 kg | |
| Performance | ||
|---|---|---|
| Repeatability | 0.06 mm | |
| Min. Operating Temperature | 0 °C | |
| Max. Operating temperature | 45 °C | |
| Joint Movement (Range: ° / Max Speed : ° /s) | ||
|---|---|---|
| J1 | -180 till 180 | ±180 |
| J2 | -105 till 140 | ±180 |
| J3 | -155 till 135 | ±160 |
| J4 | -360 till 360 | ±185 |
| J5 | -145 till 145 | ±165 |
| J6 | -360 till 360 | ±280 |
| J7 | - | - |
| Other Features | ||
|---|---|---|
| IP classification | IP65 | |
| Mounting Direction | Boden, Decke | |
| Control Box | ||
|---|---|---|
| Dimension | 550 x 580 x 278 mm | |
| Weight | 40 kg | |
| I/O ports | 2x Ethernet 2x USB 2x RS-232C | |
| I/O power supply | AC 200-220 V 3-Phase | |
| IP classification | IP54 | |
| Teach Panel | ||
|---|---|---|
| Cable length | 5 | |

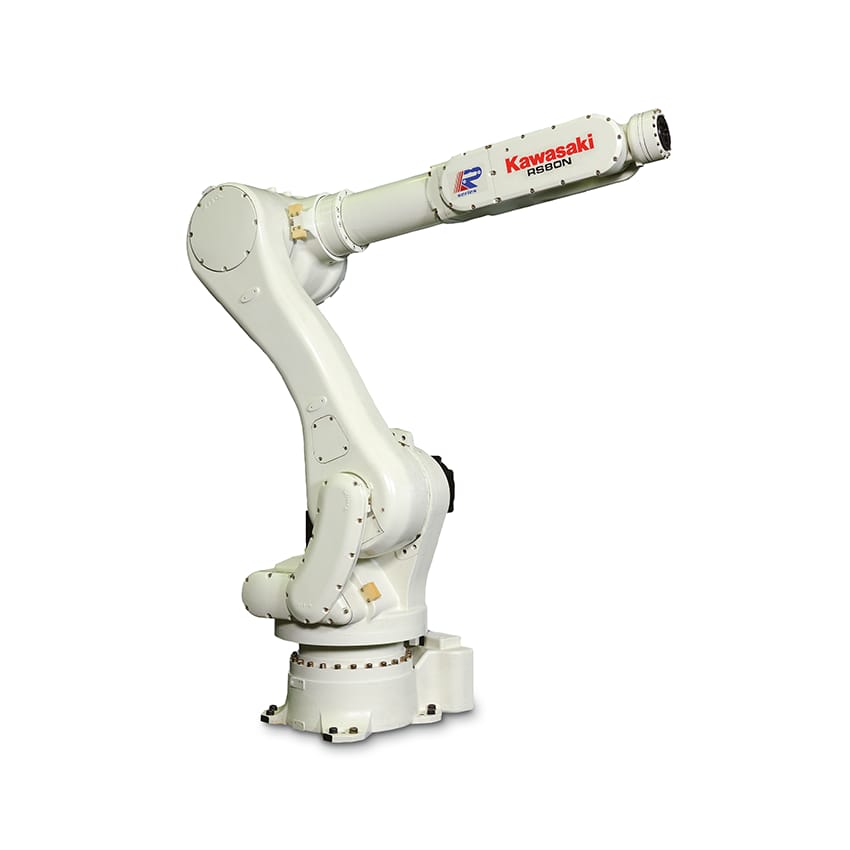

The Kawasaki Robotics RS080N is a large, powerful industrial robot with a payload capacity of 80kg and a reach of 2100 mm. The R series robots from Kawasaki are ideal for a wide range of applications in a variety of industries. Assembly, material handling, machine tending, dispensing and material removal are just some of the possible applications that the RS080N can take on.
The R series
The R-Series from Kawasaki Robotics is a range of universal robots for small to medium payloads. Kawasaki's technology and expertise are reflected in the R-Series, which offers outstanding performance in its class. The compact models offer higher speed and an extended working range. A diverse product range is available to meet the needs of customers in different applications and industries.
Download the Kawasaki Robotics lineup Brochure (DE) here!
Download the Kawasaki RS080N manual (DE) here!
Download the Kawasaki RS080N step file here!
