Kawasaki Robotics RS025N
ROI Calculator
€42,300.00 excl. VAT.
From 1.000,00 € a month with lease buy or installment.
- Overview
- Specifications
- Description
- Downloads
- FAQ
- Similar products
Featured on Unchained TV
Unfortunately, there are no use case videos yet for this product. Click here to watch other videos on Unchained TV.
| Arm | ||
|---|---|---|
| Reach | 1,890 mm | |
| Payload | 25 kg | |
| Weight | 270 kg | |
| Performance | ||
|---|---|---|
| Repeatability | 0.04 mm | |
| Min. Operating Temperature | 0 °C | |
| Max. Operating temperature | 45 °C | |
| Joint Movement (Range: ° / Max Speed : ° /s) | ||
|---|---|---|
| J1 | -180 till 180 | ±215 |
| J2 | -100 till 131 | ±215 |
| J3 | -161 till 145 | ±270 |
| J4 | -270 till 270 | ±420 |
| J5 | -145 till 145 | ±420 |
| J6 | -360 till 360 | ±780 |
| J7 | - | - |
| Other Features | ||
|---|---|---|
| IP classification | IP67 | |
| Mounting Direction | Boden | |

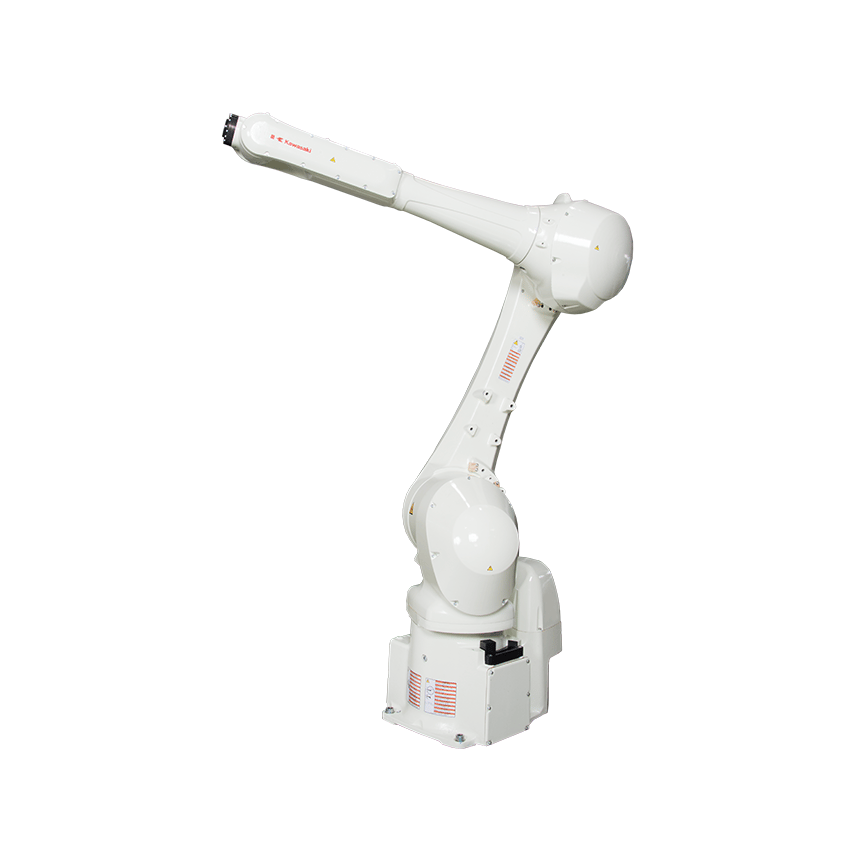

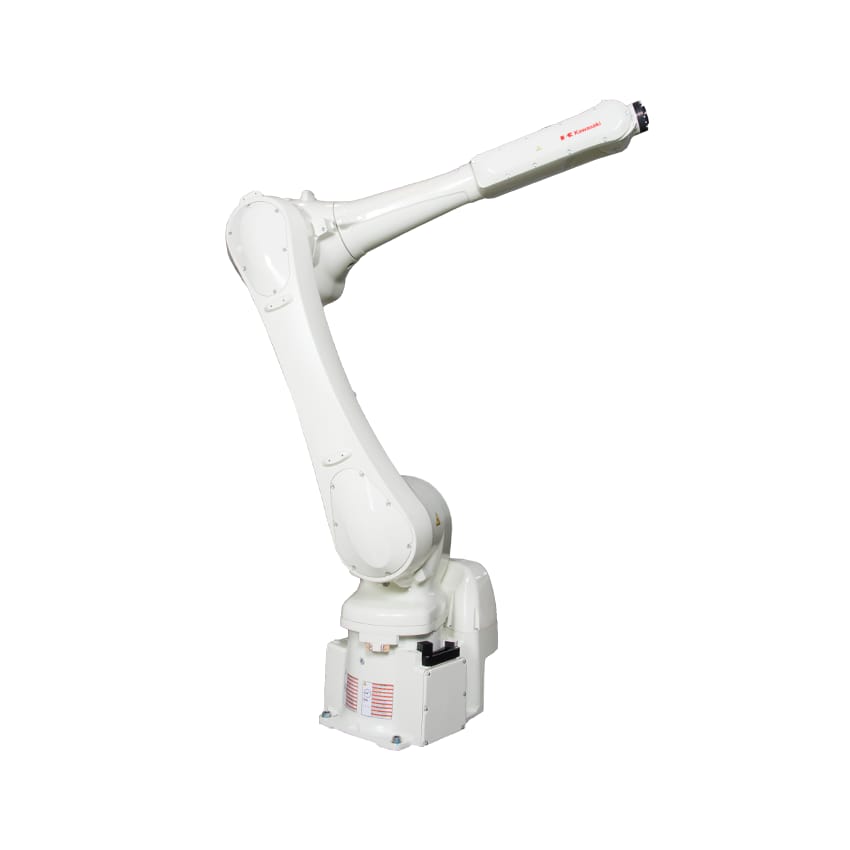

The Kawasaki Robotics RS025N is a modern and powerful industrial robot with a payload capacity of 25kg and a reach of 1885 mm. The R series robots from Kawasaki are ideal for a wide range of applications in a variety of industries. Assembly, material handling, machine tending, dispensing and material removal are just some of the possible applications that the RS025N can take on.
The R series
The R-Series from Kawasaki Robotics is a range of universal robots for small to medium payloads. Kawasaki's technology and expertise are reflected in the R-Series, which offers outstanding performance in its class. The compact models offer higher speed and an extended working range. A diverse product range is available to meet the needs of customers in different applications and industries.
Download the Kawasaki Robotics lineup Brochure (DE) here!
Download the Kawasaki RS025N manual here!
Download the Kawasaki RS025N step file here!
To place an order, send us an inquiry through the button at the top of the page or contact us through the chat.
