Kawasaki Robotics RS013N
ROI Calculator
€32,400.00 excl. VAT.
From 1.000,00 € a month with lease buy or installment.
- Overview
- Specifications
- Description
- Downloads
- FAQ
- Similar products
Featured on Unchained TV
Unfortunately, there are no use case videos yet for this product. Click here to watch other videos on Unchained TV.
| Arm | ||
|---|---|---|
| Reach | 1,460 mm | |
| Payload | 13 kg | |
| Weight | 170 kg | |
| Performance | ||
|---|---|---|
| Repeatability | 0.03 mm | |
| Min. Operating Temperature | 0 °C | |
| Max. Operating temperature | 45 °C | |
| Joint Movement (Range: ° / Max Speed : ° /s) | ||
|---|---|---|
| J1 | -180 till 180 | ±265 |
| J2 | -105 till 138 | ±250 |
| J3 | -159 till 135 | ±265 |
| J4 | -200 till 200 | ±475 |
| J5 | -125 till 125 | ±475 |
| J6 | -360 till 360 | ±730 |
| J7 | - | - |
| Other Features | ||
|---|---|---|
| IP classification | IP67 | |
| Mounting Direction | Boden, Decke | |
| Control Box | ||
|---|---|---|
| Dimension | 300 x 500 x 188 mm | |
| Weight | 8.3 kg | |
| I/O ports | 16x in 16x out 3x USB 2.0 2x RS-232C 2x Ethernet | |
| I/O power supply | AC 200-230V | |
| IP classification | IP20 | |

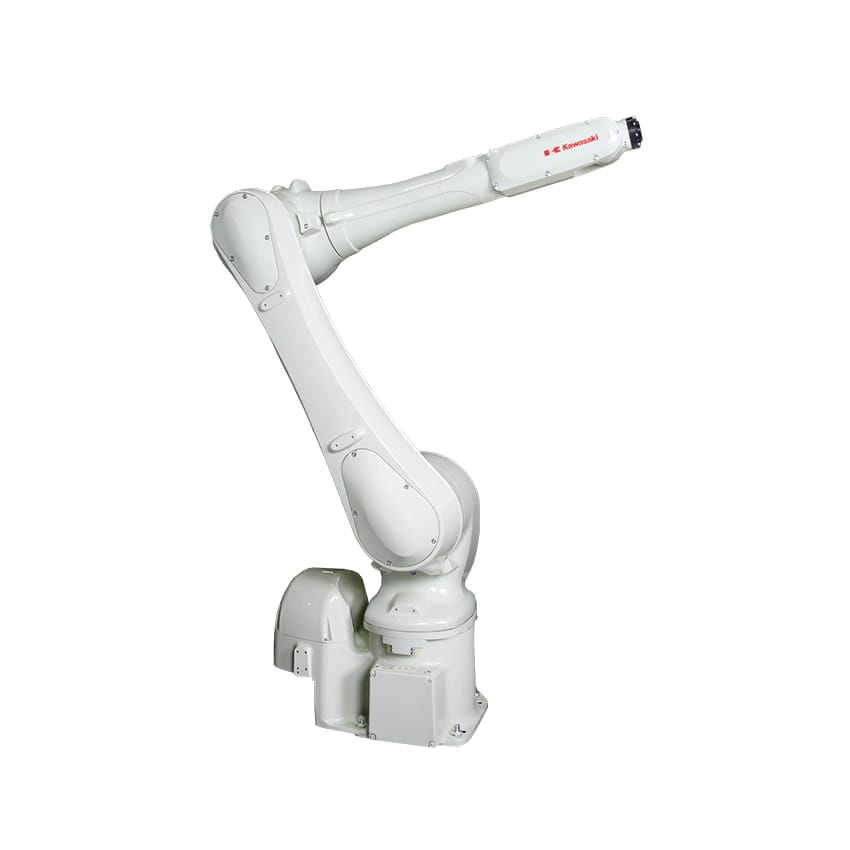

The Kawasaki Robotics RS013N is a large, powerful industrial robot with a payload capacity of 13kg and a reach of 1460 mm. The R series robots from Kawasaki are ideal for a wide range of applications in a variety of industries. Assembly, material handling, machine tending, dispensing and material removal are just some of the possible applications that the RS013N can take on.
The R series
The R-Series from Kawasaki Robotics is a range of universal robots for small to medium payloads. Kawasaki's technology and expertise are reflected in the R-Series, which offers outstanding performance in its class. The compact models offer higher speed and an extended working range. A diverse product range is available to meet the needs of customers in different applications and industries.
Download the Kawasaki Robotics lineup Brochure (DE) here!
Download the Kawasaki RS013N manual here!
Download the Kawasaki RS013N step file here!
To place an order, send us an inquiry through the button at the top of the page or contact us through the chat.
