Kawasaki Robotics RS010L
ROI Calculator
€37,100.00 excl. VAT.
From 1.000,00 € a month with lease buy or installment.
- Overview
- Specifications
- Description
- Downloads
- FAQ
- Similar products
Featured on Unchained TV
Unfortunately, there are no use case videos yet for this product. Click here to watch other videos on Unchained TV.
| Arm | ||
|---|---|---|
| Reach | 1,930 mm | |
| Payload | 10 kg | |
| Weight | 230 kg | |
| Performance | ||
|---|---|---|
| Repeatability | 0.05 mm | |
| Min. Operating Temperature | 0 °C | |
| Max. Operating temperature | 45 °C | |
| Joint Movement (Range: ° / Max Speed : ° /s) | ||
|---|---|---|
| J1 | -180 till 180 | ±190 |
| J2 | -105 till 155 | ±205 |
| J3 | -163 till 150 | ±210 |
| J4 | -270 till 270 | ±400 |
| J5 | -145 till 145 | ±360 |
| J6 | -360 till 360 | ±610 |
| J7 | - | - |
| Other Features | ||
|---|---|---|
| IP classification | IP65 | |
| Mounting Direction | Boden, Decke | |
| Control Box | ||
|---|---|---|
| Dimension | 300 x 500 x 188 mm | |
| Weight | 8.3 kg | |
| I/O ports | 16x in 16x out 3x USB 2.0 2x RS-232C 2x Ethernet | |
| I/O power supply | AC 200-230V | |
| IP classification | IP20 | |

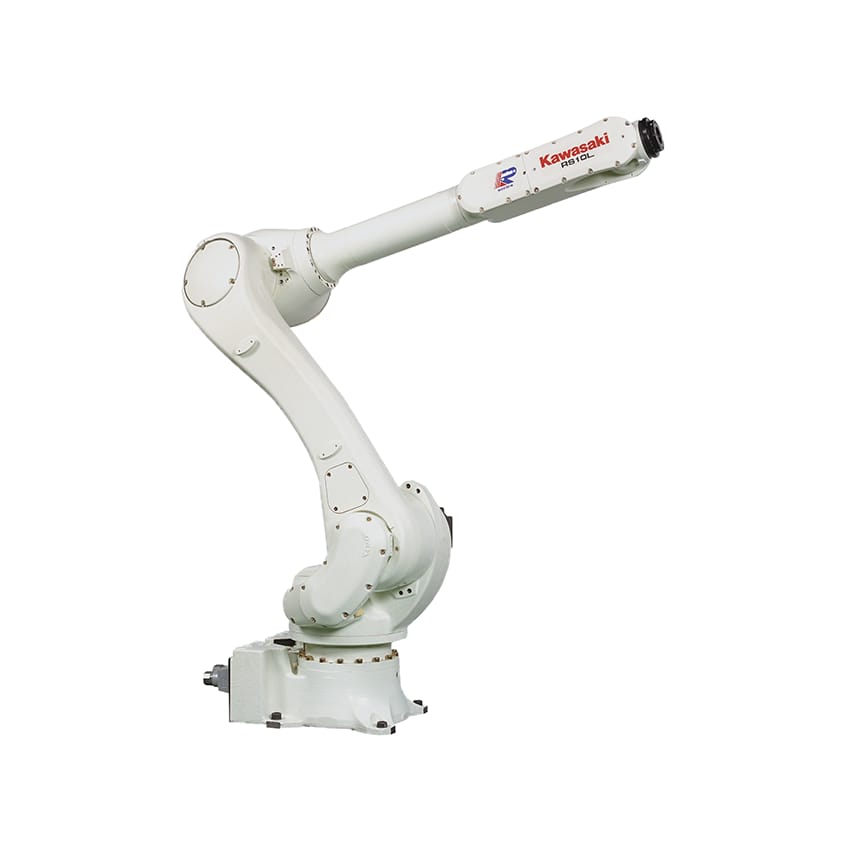

The Kawasaki Robotics RS010L is a large, powerful industrial robot with a payload capacity of 10kg and a reach of 1925 mm. The R series robots from Kawasaki are ideal for a wide range of applications in a variety of industries. Assembly, material handling, machine tending, dispensing and material removal are just some of the possible applications that the RS010L can take on.
The R series
The R-Series from Kawasaki Robotics is a range of universal robots for small to medium payloads. Kawasaki's technology and expertise are reflected in the R-Series, which offers outstanding performance in its class. The compact models offer higher speed and an extended working range. A diverse product range is available to meet the needs of customers in different applications and industries.
Download the Kawasaki Robotics lineup Brochure (DE) here!
Download the Kawasaki RS010L manual here!
Download the Kawasaki RS010L step file here!
To place an order, send us an inquiry through the button at the top of the page or contact us through the chat.
Unchained Robotics is the biggest marketplace for all things automation. We have over 36 brands with 9 different categories such as Cobots, Grippers, Cameras, Starter-kits, End-of-Arm-Accessories, Teaching-kits, Turnkey Solution, Cobot-Base and even
Services. For more information, check out our About page.
