Kawasaki Robotics RS006L
ROI Calculator
€29,700.00 excl. VAT.
From 1.000,00 € a month with lease buy or installment.
- Overview
- Specifications
- Description
- Downloads
- FAQ
- Similar products
Featured on Unchained TV
Unfortunately, there are no use case videos yet for this product. Click here to watch other videos on Unchained TV.
| Arm | ||
|---|---|---|
| Reach | 1,650 mm | |
| Payload | 6 kg | |
| Weight | 150 kg | |
| Performance | ||
|---|---|---|
| Repeatability | 0.03 mm | |
| Min. Operating Temperature | 0 °C | |
| Max. Operating temperature | 45 °C | |
| Joint Movement (Range: ° / Max Speed : ° /s) | ||
|---|---|---|
| J1 | -180 till 180 | ±250 |
| J2 | -105 till 145 | ±250 |
| J3 | -163 till 150 | ±215 |
| J4 | -270 till 270 | ±365 |
| J5 | -145 till 145 | ±380 |
| J6 | -360 till 360 | ±700 |
| J7 | - | - |
| Other Features | ||
|---|---|---|
| IP classification | IP65 | |
| Mounting Direction | Boden, Decke | |
| Control Box | ||
|---|---|---|
| Dimension | 300 x 500 x 188 mm | |
| Weight | 8.3 kg | |
| I/O ports | 16x in 16x out 3x USB 2.0 2x RS-232C 2x Ethernet | |
| I/O power supply | AC 200-230V | |
| IP classification | IP20 | |

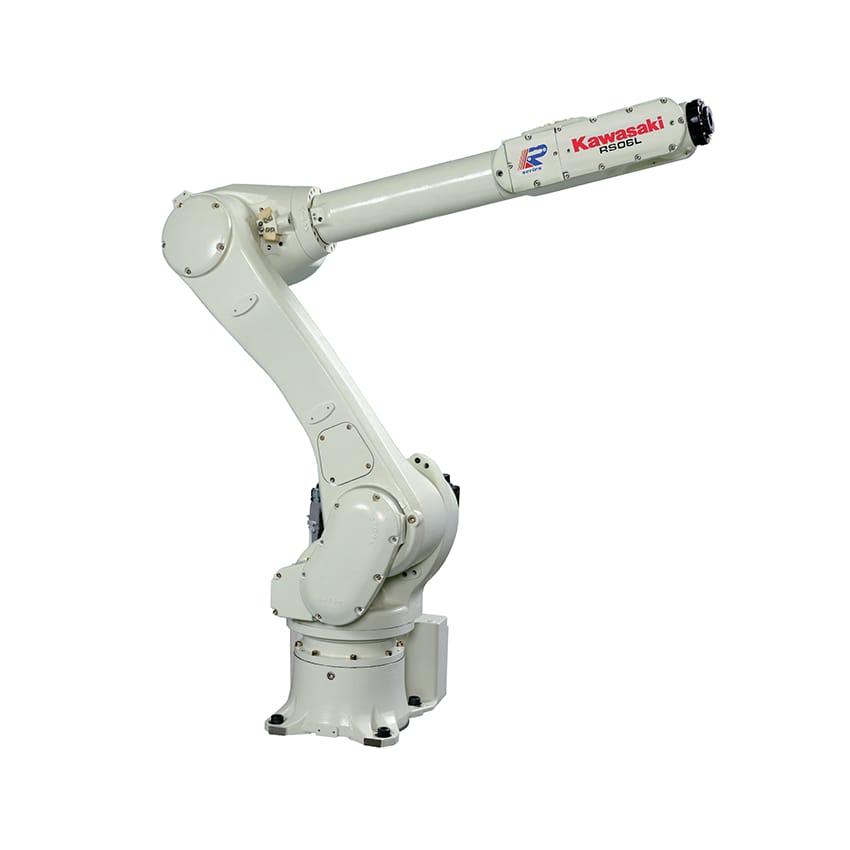

The Kawasaki Robotics RS006L is a large and fast industrial robot with a payload capacity of 6kg and a reach of 1650 mm. The R series robots from Kawasaki are ideal for a wide range of applications in a variety of industries. Assembly, material handling, machine tending, dispensing and material removal are just some of the possible applications that the RS006L can take on.
The R series
The R-Series from Kawasaki Robotics is a range of universal robots for small to medium payloads. Kawasaki's technology and expertise are reflected in the R-Series, which offers outstanding performance in its class. The compact models offer higher speed and an extended working range. A diverse product range is available to meet the needs of customers in different applications and industries.
Download the Kawasaki Robotics lineup Brochure (DE) here!
Download the Kawasaki RS006L manual (EN) here!
Download the Kawasaki RS006L step file here!
To place an order, send us an inquiry through the button at the top of the page or contact us through the chat.
