Kawasaki Robotics RS003N
ROI Calculator
€22,200.00 excl. VAT.
From 1.000,00 € a month with lease buy or installment.
- Overview
- Specifications
- Description
- Downloads
- FAQ
- Similar products
Featured on Unchained TV
Unfortunately, there are no use case videos yet for this product. Click here to watch other videos on Unchained TV.
| Arm | ||
|---|---|---|
| Reach | 620 mm | |
| Payload | 3 kg | |
| Weight | 20 kg | |
| Performance | ||
|---|---|---|
| Repeatability | 0.02 mm | |
| Min. Operating Temperature | 0 °C | |
| Max. Operating temperature | 45 °C | |
| Joint Movement (Range: ° / Max Speed : ° /s) | ||
|---|---|---|
| J1 | -160 till 160 | ±360 |
| J2 | -60 till 150 | ±250 |
| J3 | -150 till 120 | ±225 |
| J4 | -360 till 360 | ±540 |
| J5 | -135 till 135 | ±225 |
| J6 | -360 till 360 | ±540 |
| J7 | - | - |
| Other Features | ||
|---|---|---|
| IP classification | IP54 | |
| Mounting Direction | Boden, Decke | |
| Control Box | ||
|---|---|---|
| Dimension | 300 x 500 x 188 mm | |
| Weight | 8.3 kg | |
| I/O ports | 16x in 16x out 3x USB 2.0 2x RS-232C 2x Ethernet | |
| I/O power supply | AC 200-230V | |
| IP classification | IP20 | |

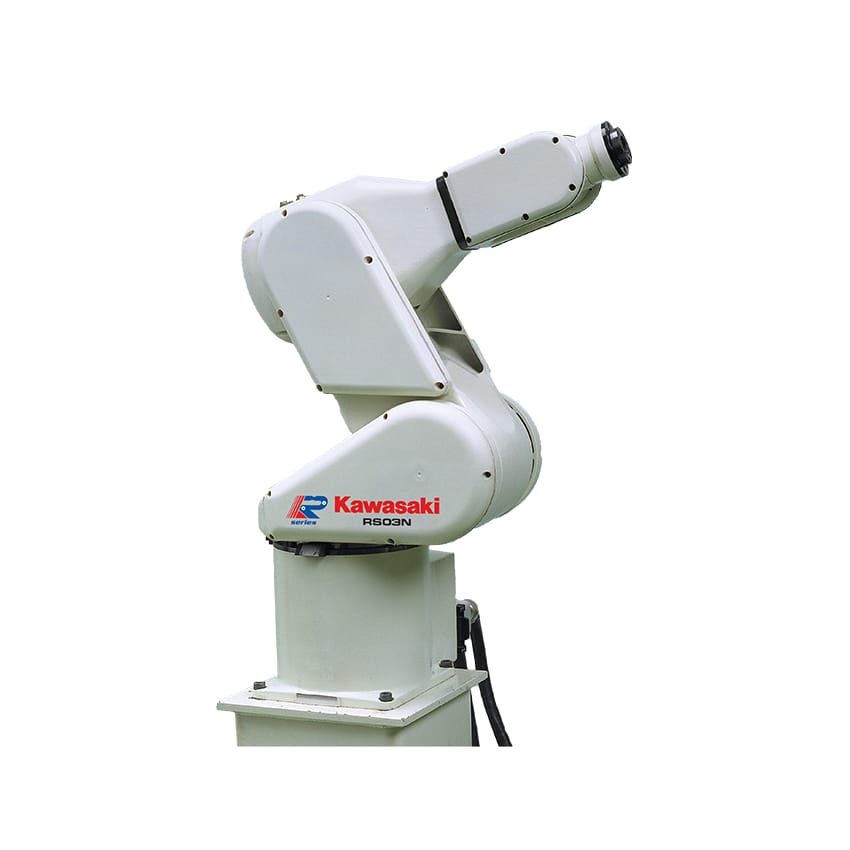

The Kawasaki Robotics RS003N is a compact and fast industrial robot with a payload capacity of 3kg and a reach of 620 mm. The R series robots from Kawasaki are ideal for a wide range of applications in a variety of industries. Assembly, material handling, machine tending, dispensing and material removal are just some of the possible applications that the RS003N can take on.
The R series
The R-Series from Kawasaki Robotics is a range of universal robots for small to medium payloads. Kawasaki's technology and expertise are reflected in the R-Series, which offers outstanding performance in its class. The compact models offer higher speed and an extended working range. A diverse product range is available to meet the needs of customers in different applications and industries.
Lade dir hier die Kawasaki Robotics lineup Brochure (DE) herunter!
Download the Kawasaki RS003N manual here!
Download the Kawasaki RS003N step file here!
