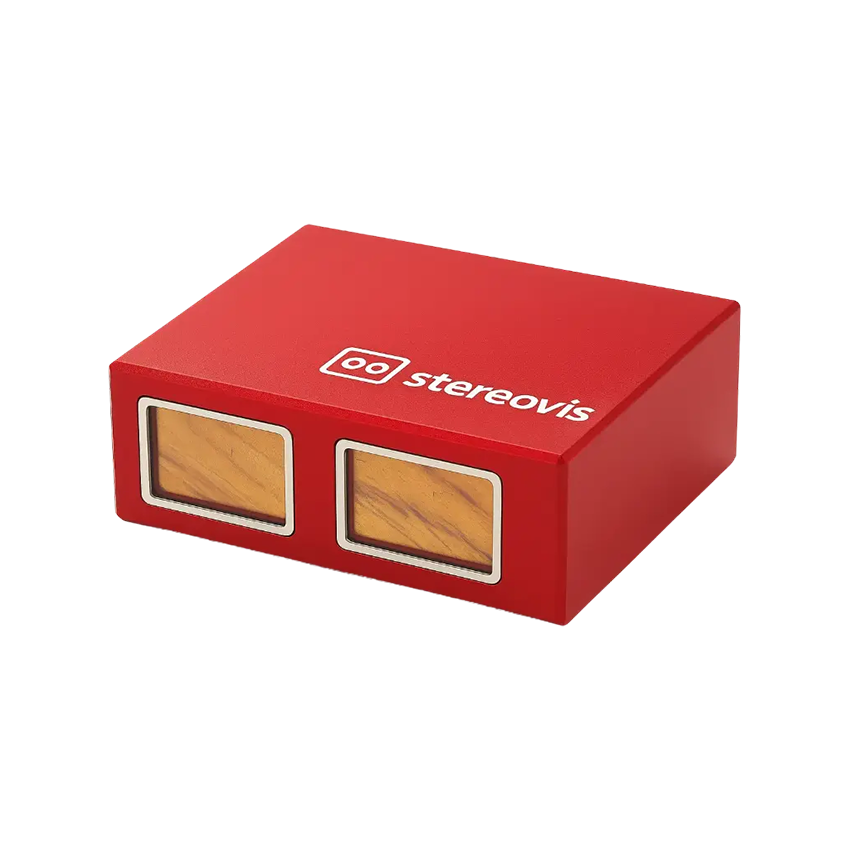

The Stereovis M07 is a high-performance stereo camera with an integrated processor that has been specially developed for industrial applications such as bin picking, machine tending or the automation of logistical processes. Thanks to its wide field of view, it is particularly suitable for detecting large parts or container contents.


The fully embedded processing unit based on a Jetson Nano means that the M07 does not require an external PC system and still delivers 3D data such as point clouds and object positions in real time.


The robust, IP65-protected aluminium construction ensures reliable use even in demanding industrial environments.


The M07 is equipped with an AI-enabled SDK that includes functions such as calibration and correction of the object position. Developers can access the camera via common programming languages such as Python, C++ and C#, and integration into ROS is also possible without any problems.


Thanks to the support of all common robot arms via TCP/IP, the M07 is immediately ready for automated applications in production and inspection.

Technical data

• Processor: NVIDIA Jetson Nano
• Interface: Gigabit Ethernet
• Weight: 1.3 kg
• Current: 24V / 2A
• Operating temperature: -10 - 50°C
• Dimensions: 143 x 135 x 59 mm

The M07 is available in different versions which differ in the working distance and field of view, but are structurally identical.

Versions

• Working distance: 200 - 450 mm
• Field of view: 70 x 40 mm - 310 x 190 mm
• Depth accuracy: 0.01 - 0.02 mm
• Z-axis-range: 185 - 200 mm - 350 - 550 mm
