1,600 mm
12 kg
ROI Calculator
€41,500.00 excl. VAT.
From 1.000,00 € a month with lease buy or installment.
- Overview
- Compare
- In the box
- Use case combination
- Specifications
- Description
- Downloads
- FAQ
- Similar products
Featured on Unchained TV
Unfortunately, there are no use case videos yet for this product. Browse other robotics videos on Unchained TV.
Compare
Reach
Payload
Repeatability
Weight
€41,500.00 excl. VAT.
1600 mm
12 kg
0.01 mm
56 kg

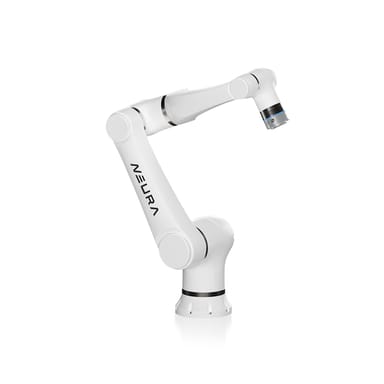

€22,500.00 excl. VAT.
1000 mm
10 kg
0.02 mm
42 kg

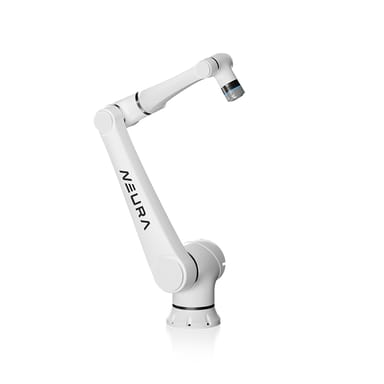

€24,900.00 excl. VAT.
1300 mm
15 kg
0.02 mm
55 kg

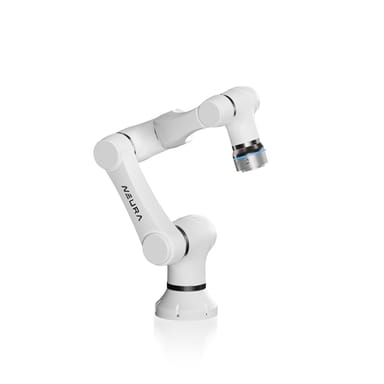

€16,500.00 excl. VAT.
590 mm
3 kg
0.02 mm
17 kg
Reach
Payload
Repeatability
Weight
€41,500.00 excl. VAT.
1600 mm
12 kg
0.01 mm
56 kg
€48,050.00 excl. VAT.
900 mm
16 kg
0.1 mm
32.2 kg
€44,500.00 excl. VAT.
1900 mm
20 kg
0.05 mm
75 kg
€28,130.00 excl. VAT.
1304 mm
12 kg
0.05 mm
37 kg
In the box
Use case combination
| Arm | ||
|---|---|---|
| Reach | 1,600 mm | |
| Payload | 12 kg | |
| Weight | 56 kg | |
| Performance | ||
|---|---|---|
| Max. linear TCP speed | 4.5 m/s | |
| Repeatability | 0.01 mm | |
| Min. Operating Temperature | 0 °C | |
| Max. Operating temperature | 50 °C | |
| I/O Ports | EtherCAT, GPIO, Modbus via M8 8-pin-A-M | IEC 61076-2-104 | |
| I/O Power Supply | 24V & 0,6A | |
| Joint Movement (Range: ° / Max Speed : ° /s) | ||
|---|---|---|
| J1 | -360 till 360 | ±120 |
| J2 | -120 till 120 | ±120 |
| J3 | -270 till 270 | ±150 |
| J4 | -150 till 150 | ±150 |
| J5 | -270 till 270 | ±200 |
| J6 | -160 till 160 | ±200 |
| J7 | -till 360 | ±360 |
| Other Features | ||
|---|---|---|
| IP classification | IP65 | |
| Mounting Direction | All directions | |
| Interfaces | EtherCAT, TCP/IP, Modbus TCP, GPIO, UDP, OPCUA | |
| Control Box | ||
|---|---|---|
| Dimension | 592 x 567 x 253mm | |
| Weight | 35 kg | |
| I/O ports | 22 safe IOs, 14 digital in, 8 digital out, 10 digital in/out, 8 analog in, 8 analog out | |
| Communication | EtherCAT, Ethernet TCP/IP / UDP, Modbus TCP , OPCUA | |
| Nominal power consumption | 3,200 W | |
| Supply voltage | 100-240 VAC | |
| Teach Panel | ||
|---|---|---|
| Dimension | 285 x 228 x 95mm | |
| Cable length | 5 m | |
To place an order, send us an inquiry through the button at the top of the page or contact us through the chat.
