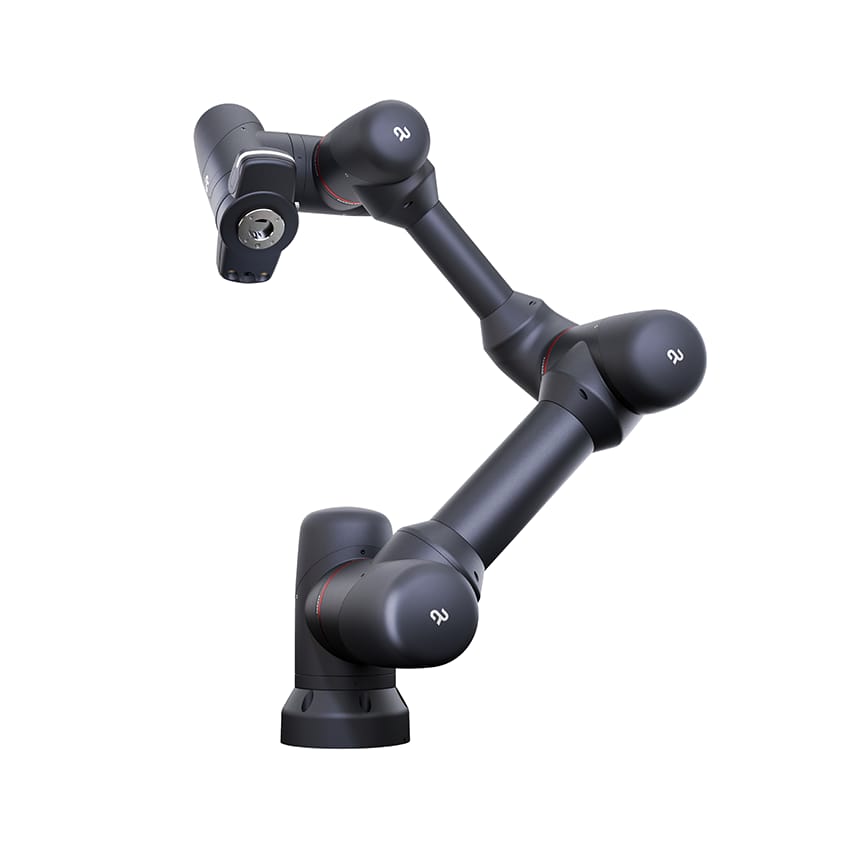

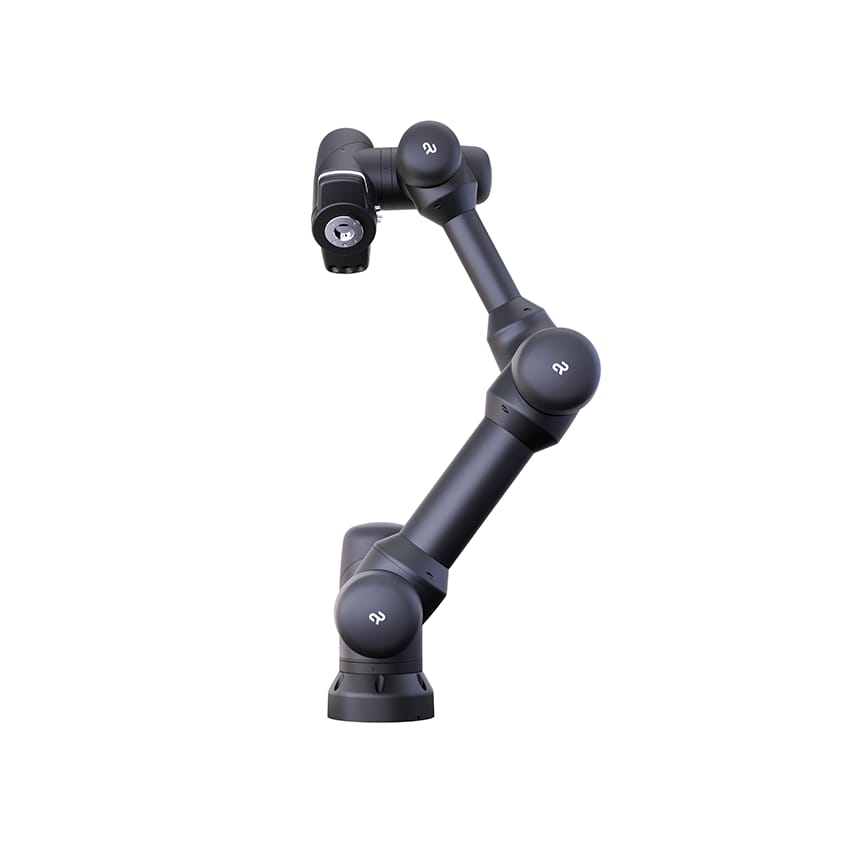

Agile Robots Yu 5 Industrial
1,000 mm
5 kg
ROI Calculator
€27,000.00 excl. VAT.
From 1.000,00 € a month with lease buy or installment.
- Overview
- Compare
- Specifications
- Description
- Downloads
- FAQ
- Similar products
High precision
Integrated torque sensors and cutting-edge speed control make the Yu 5 Industrial the perfect tool for precise and sensitive industrial applications.
User-friendly
The intuitive user interface allows anyone to create and implement industrial tasks in no time at all - without any programming or robotics knowledge. In addition, the robot can also be programmed manually using hand guidance.
Featured on Unchained TV
Unfortunately, there are no use case videos yet for this product. Click here to watch other videos on Unchained TV.
Compare
Reach
Payload
Repeatability
Weight
Agile Robots Yu 5 Industrial
€27,000.00 excl. VAT.
1000 mm
5 kg
0.05 mm
31.5 kg
Reach
Payload
Repeatability
Weight
Agile Robots Yu 5 Industrial
€27,000.00 excl. VAT.
1000 mm
5 kg
0.05 mm
31.5 kg
Fanuc CRX-25iA
€52,000.00 excl. VAT.
1889 mm
30 kg
0.05 mm
135 kg
Universal Robots UR10e
€38,928.00 excl. VAT.
1300 mm
12.5 kg
0.05 mm
33.5 kg
AUBO i20
€30,000.00 excl. VAT.
1650 mm
20 kg
0.1 mm
63 kg
| Arm | ||
|---|---|---|
| Reach | 1,000 mm | |
| Payload | 5 kg | |
| Weight | 31.5 kg | |
| Performance | ||
|---|---|---|
| Max. linear TCP speed | 2 m/s | |
| Repeatability | 0.05 mm | |
| Min. Operating Temperature | 5 °C | |
| Max. Operating temperature | 40 °C | |
| I/O Ports | 16xDI, 16xDO, 4xAI, 4xSafeDI, 4xSafeDO, Ethernet | |
| I/O Power Supply | 220-230VAC, 50/60Hz | |
| Joint Movement (Range: ° / Max Speed : ° /s) | ||
|---|---|---|
| J1 | -220 till 220 | ±141 |
| J2 | -310 till 130 | ±141 |
| J3 | -160 till 160 | ±169 |
| J4 | -310 till 130 | ±180 |
| J5 | -220 till 220 | ±180 |
| J6 | -220 till 220 | ±180 |
| J7 | - | - |
| Other Features | ||
|---|---|---|
| IP classification | IP54 | |
Industrial from Agile Robots is a powerful all-rounder that optimizes
industrial processes reliably, safely and effectively. It offers a
repeatability of ± 0.05 mm, torque sensors in all 6 axes, an integrated
intelligent camera and a payload of 5 kg at 1000 mm reach (7 kg at 850 mm).
The software

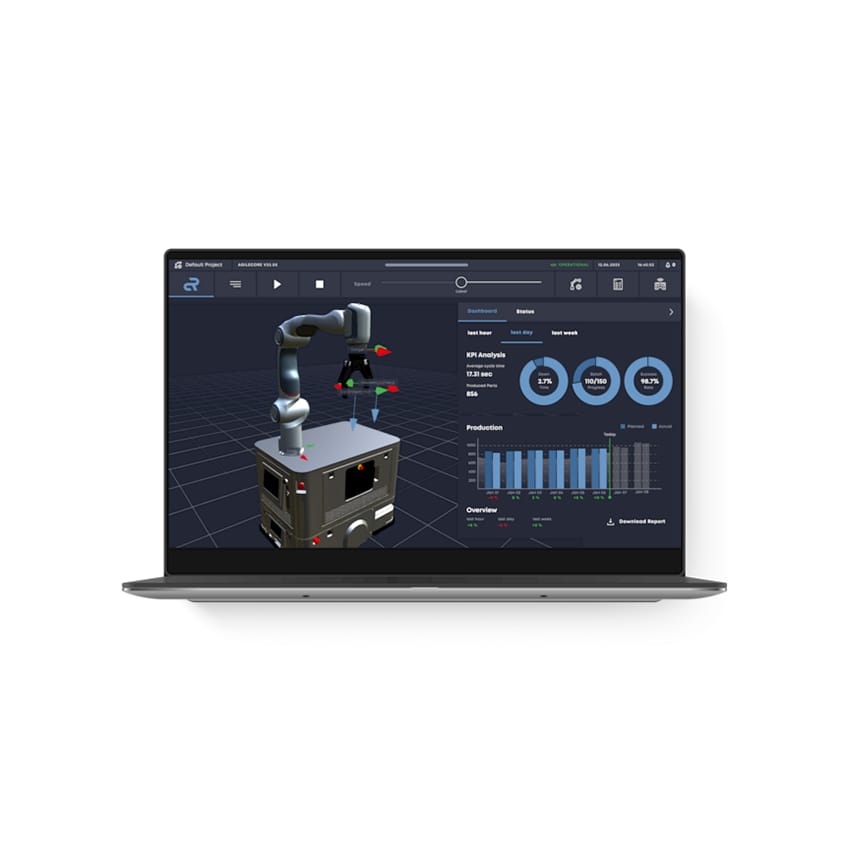

The Yu 5 Industrial features a highly user-friendly software that requires no programming knowledge. The intuitive user interface ensures fast commissioning and seamless implementation of various industrial applications. Users benefit from a vast skill library that they can further expand with their own customized skills. The Yu 5 Industrial also offers an integrated AI-supported camera with a built-in lighting system that allows the robot to identify, localize and manipulate objects independently. The robot's vision system, integrated directly into the user interface, is also intuitively designed for ease of use.
In addition
to the no-code programming approach, the Yu 5 Industrial also offers users the
flexibility to be programed in Python if desired. Here too, a library of
instructions is provided to further simplify the conventional programming by
displaying possible input commands. Like the hardware of the Yu 5 Industrial,
the software has also been certified by TÜV-Süd and therefore ensures safe
operation.
The hardware
Each of the six axes of the Yu 5 Industrial has integrated torque sensors for precise force detection and control. This allows the robot to carry out precise movements and handle objects with exceptional care. With its efficient reach and payload, the Yu 5 Industrial is perfectly suited for industrial tasks demanding a high level of sensitivity.

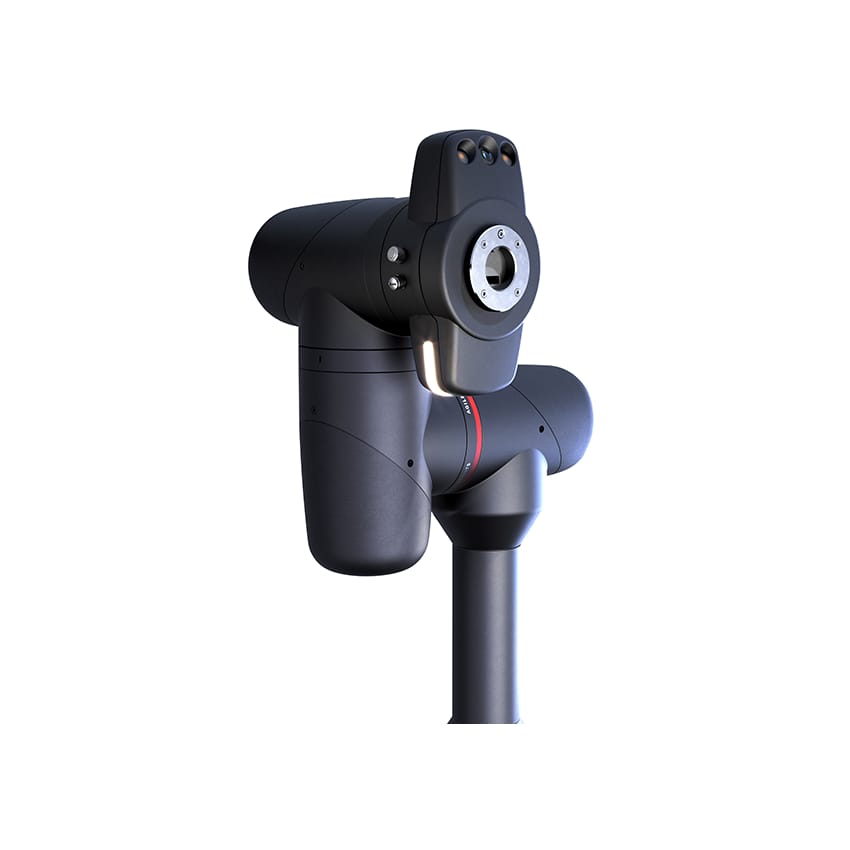

Thanks to its integrated intelligent camera, the robot can be utilized flexibly in production without relying on fixed patterns or procedures. The Yu 5 Industrial is capable of independently recognizing its workspace and the objects contained within, allowing it to react dynamically to changing conditions.
Another benefit of the robot is its compactness; with a base plate measuring just 171 mm in diameter, it can easily fit into confined work areas.
These features make the Yu 5 Industrial ideal for sorting tasks, assembly, machine tending, quality inspection, dispensing and packaging, material handling and finishing.
Download the Agile Robots Yu 5 Industrial datasheet (EN) here!
Download the Agile Robots Yu 5 Industrial brochure (EN) here!
Download the Agile Robots Yu 5 Industrial STEP file here!
