SALZ Automation Panel PC Windows

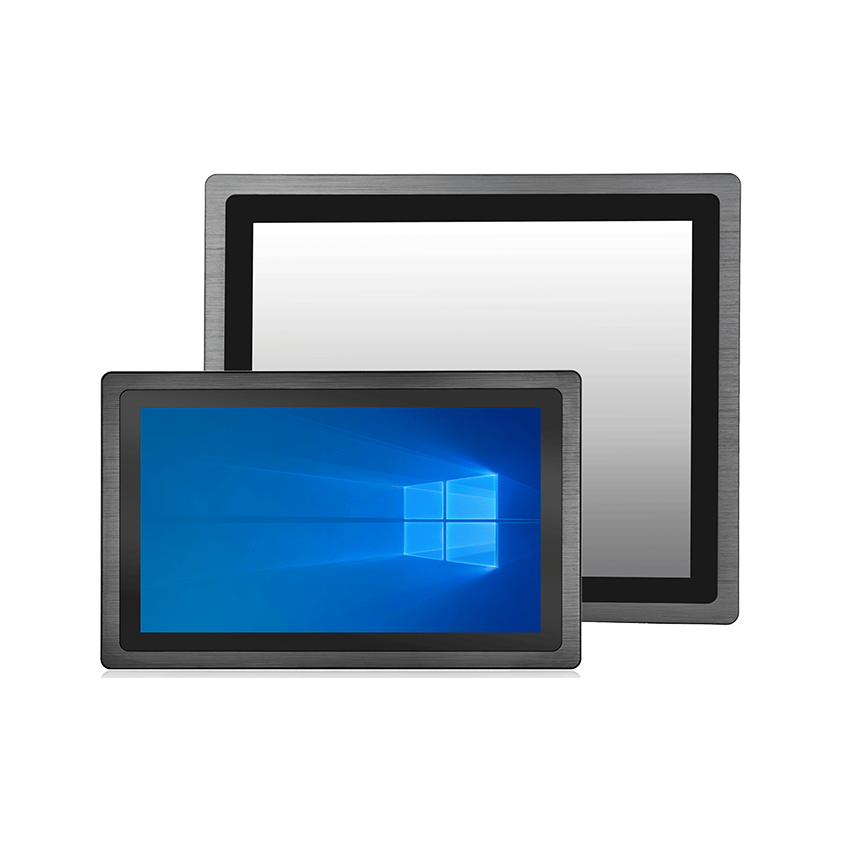

The Panel PC with Windows from SALZ Automation is an industrial panel PC that has been specially developed for use in demanding environments. The device has a capacitive 16:9 TFT LCD touchscreen that enables precise and intuitive operation. With the pre-installed Automation Browser, the panel PC is ideal for connecting controllers to their web servers, such as the CODESYS V3 web server.

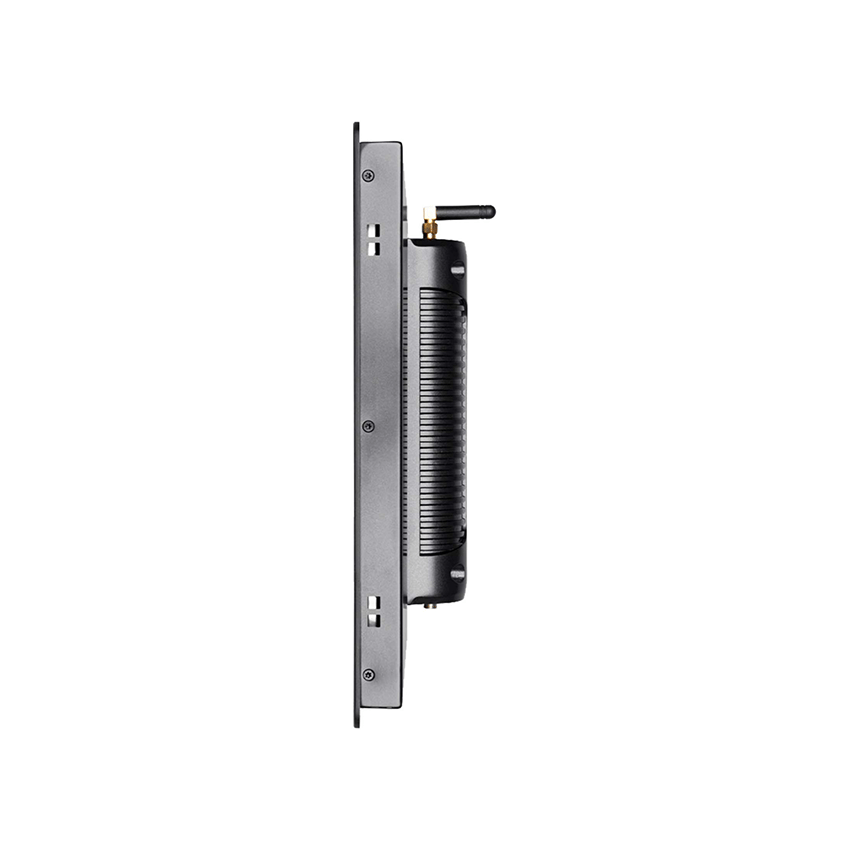

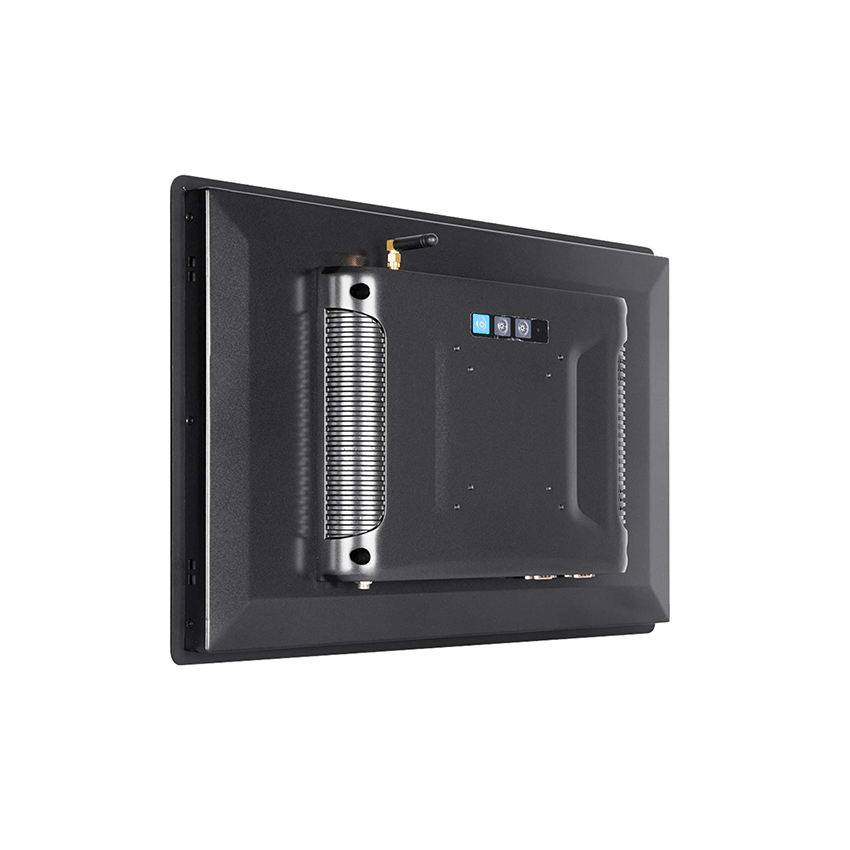

Thanks to the integrated WLAN and Bluetooth interfaces, the panel PC can be flexibly and wirelessly integrated into existing networks. The robust aluminium housing is protected against dust and splash water in accordance with IP65 and offers easy installation thanks to the VESA mounting option.

The powerful PC is available with an Intel® Celeron® J4125 or an Intel® Core™ i5-1235U processor and provides reliable computing power, while the 8 GB RAM and 128 GB eMMC memory ensure fast and smooth processing of applications. Variants with 4, 16 and 32 GB RAM and different storage sizes from 64 GB to 1 TB are also available.

The Panel PC offers a wide range of connectivity options, including USB 2.0 and 3.0, HDMI, LAN, audio I/O and serial interfaces (RS-232 and RS-485). Slots for SIM and TF cards are also available.

The display impresses with a high brightness of up to 1000 nits and offers a clear and distinct presentation with a resolution of 16:9. The touch surface supports multi-touch functions and has a hardness of 7 Mohs and a transparency of 90%.

Technical data (Celeron)

Processor: Intel® Celeron® J4125 RAM: 8 GB (optional: 4, 16, 32 GB) Memory: 128 GB eMMC (optional: 64, 256, 512 GB, 1 TB) Display: 16:9 TFT LCD with capacitive touchscreen Brightness: 300 to 1000 nits.

• 2x USB 2.0 Type A
• 2x USB 3.0 Type A
• 1x HDMI
• 2x RJ45 LAN (10/100/1000 BaseT(X))
• 1x audio output (3.5 mm)
• 1x SIM card slot
• 1x TF/SD card slot
• Serial interfaces: 2x RS-232, 1x RS-485, 3x GPIO Connectivity: WLAN (802.11a/b/g/n/ac), Bluetooth 5.0 Operating system: Windows 10 Professional / IoT / Enterprise Protection class: IP65 Mounting: VESA 100x100, 75x75 Power supply: 24V DC Power consumption: 18 W (typical), 48 W (maximum) Operating temperature: -10 °C to 65 °C



Technical data (i5)

Processor: Intel® Core™ i5-1235U RAM: 16 GB (optional: 4, 8, 32 GB) Memory: 256 GB eMMC (optional: 64, 128, 512 GB, 1 TB) Display: 16:9 TFT LCD with capacitive touchscreen Brightness: 300 to 1000 nits.

• 2x USB 2.0 Type A
• 2x USB 3.0 Type A
• 1x HDMI
• 2x RJ45 LAN (10/100/1000 BaseT(X))
• 1x audio output (3.5 mm)
• 1x SIM card slot
• 1x TF/SD card slot
• Serial interfaces: 2x RS-232, 1x RS-485 Connectivity: WLAN (802.11a/b/g/n/ac), Bluetooth 5.0 Operating system: Windows 10 Professional / IoT / Enterprise Protection class: IP65 Mounting: VESA 100x100, 75x75 Power supply: 24V DC Power consumption: 18 W (typical), 48 W (maximum) Operating temperature: -10 °C to 65 °C
