SALZ Automation Panel PC Linux

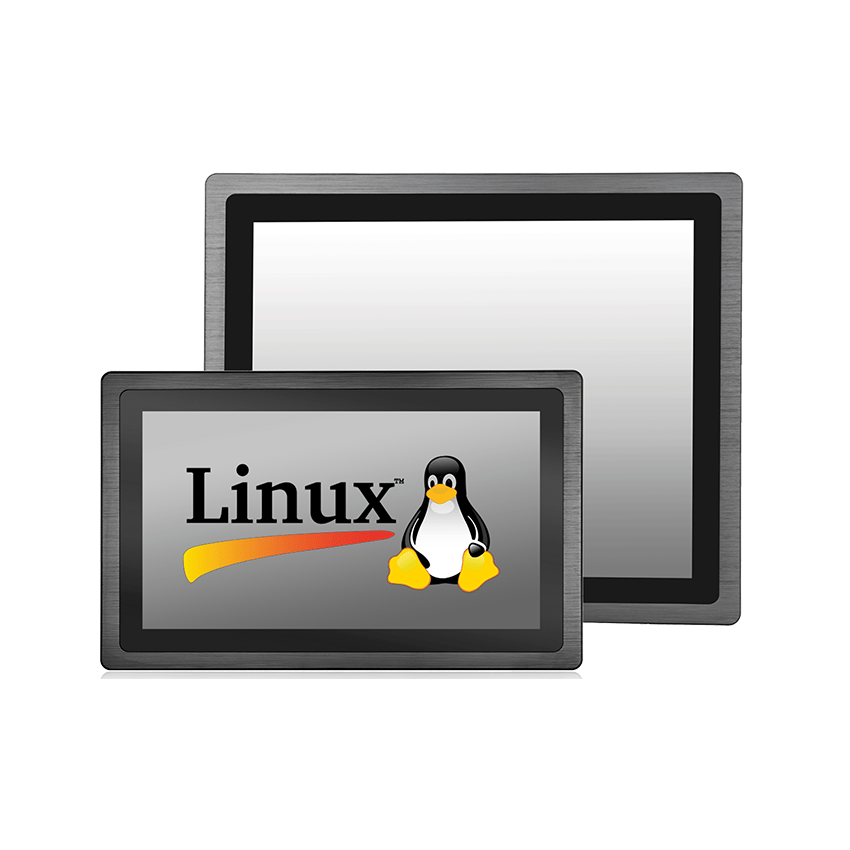

The panel PC with Linux from SALZ Automation is a powerful industrial panel PC based on the Linux operating system. It has a 10" or 15" LCD touchscreen with multi-touch functionality and offers a high level of user-friendliness thanks to a simple user interface. The device is equipped with a pre-installed Automation Browser and is ideal for connecting controllers with a web server, such as the CODESYS V3 web server.

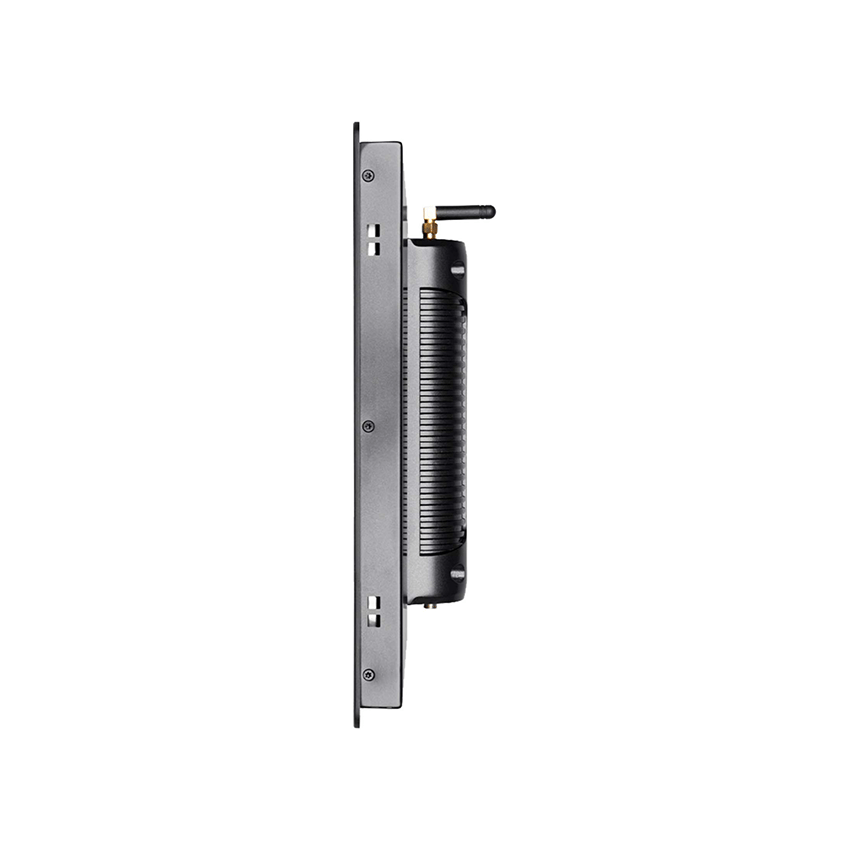

Thanks to the robust aluminium casing and IP65-certified front, the Panel PC is protected against dust and splash water. The device operates without a fan and is therefore suitable for use in demanding industrial environments.

The Panel PC is powered by a Rockchip RK3588 processor, which consists of a quad-core Cortex-A76 and a quad-core Cortex-A55 architecture and clocks at 1.4 GHz. The graphics display is supported by an ARM Mali-T860 MP4 GPU, which ensures smooth visualisation. With 8 GB RAM and 64 GB eMMC memory, the system offers sufficient capacity for demanding applications.

The panel PC supports the Linux 4.4, Ubuntu 18.04 and Debian 10 operating systems and is equipped with CE, FCC Class A and CCC certifications. Power is supplied via a 24V DC power source, and energy consumption is typically 18 W with a maximum power consumption of 48 W.

Technical data

• Processor: Rockchip RK3588 Quad-Core Cortex-A76 + Quad-Core Cortex-A55
• Graphics: ARM Mali-T860 MP4 GPU
• RAM: 8 GB
• Memory: 64 GB eMMC
• Operating systems: Linux 4.4, Ubuntu 18.04, Debian 10
• Display: 16:9 LCD mit Touch
• Brightness: 300 - 1000 nits
• Viewing angle: 85° in all directions
• Connections: HDMI, Ethernet (RJ45), USB 2.0, USB 3.0, RS-232, RS-485, Audio I/O
• Drahtlos: Wi-Fi 6, Bluetooth 5.0

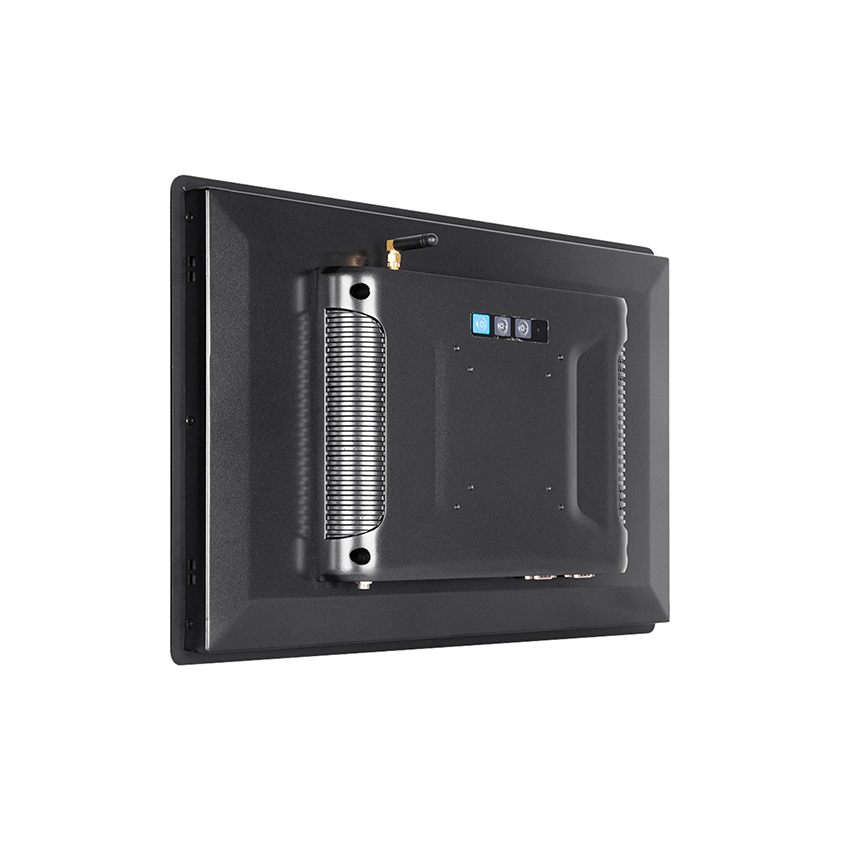

• Mounting: VESA 100 x 100 and 75 x 75
• Power supply: 24 V DC
• Power consumption: Typically 18 W, maximum 48 W
• Operating temperature: -10°C to 60°C
