| Overview | ||
|---|---|---|
| Payload | 0.1 kg | |
| Weight | 0.43 kg | |
| Dimension | 94 × 53.5 × 38 mm | |
| Number of fingers | 3 | |
| Operating mode | Electric | |
| Performance | ||
|---|---|---|
| Min. Operating Temperature | 0 °C | |
| Max. Operating temperature | 40 °C | |
| Stroke | 10 mm | |
| Max. Gripforce | 10 N | |
| Repeatability | 0.03 mm | |
| Interfaces | ||
|---|---|---|
| Supply voltage | 24 V | |
| Max. current | 0.6 A | |
| Communication | Standard: Modbus RTU (RS485), Digital I/O Optional: TCP/IP, USB 2.0, CAN 2.0A, PROFINET, EtherCAT | |

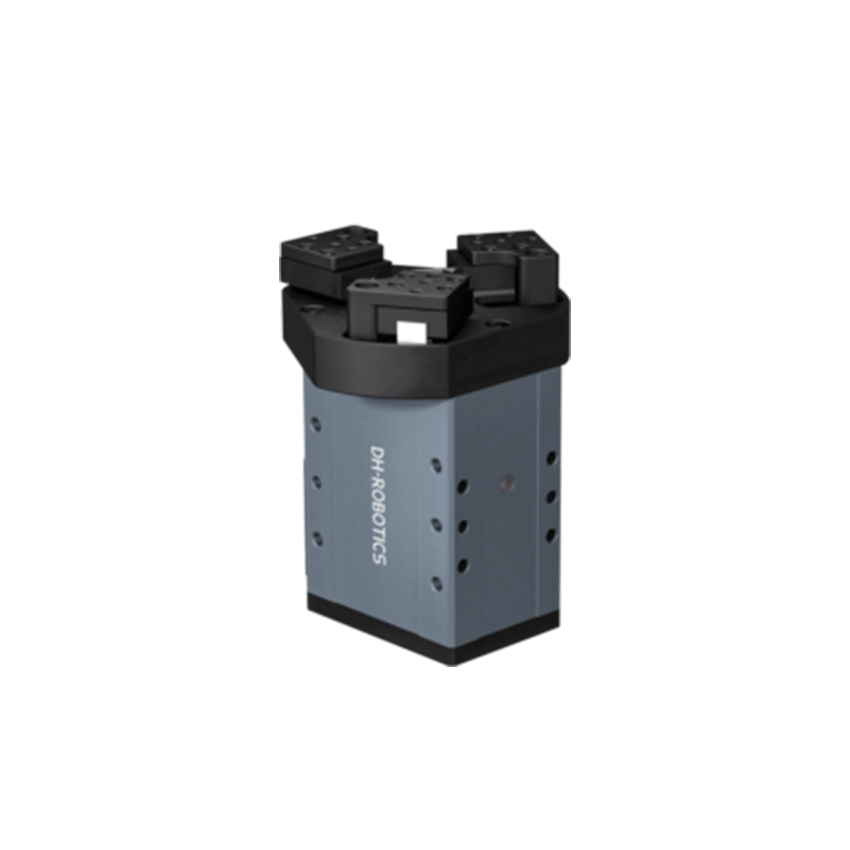

The DH Robotics CGE-10-10 is an electric centric gripper for cylindrical workpieces. Its three gripping fingers hold the workpiece centrally. The model is designed for small, lightweight components and combines a compact design with a low weight.
Gripping force, finger position and movement speed can be adjusted to adapt the gripping process to the workpiece and the workflow. The control system is integrated into the gripper. A function for detecting lost workpieces assists in monitoring the handling process.
The CGE-10-10 can be connected to the system control via digital interfaces. It is suitable for automated processes in which small cylindrical parts are picked up, aligned and passed on.
To place an order, send us an inquiry through the button at the top of the page or contact us through the chat.
