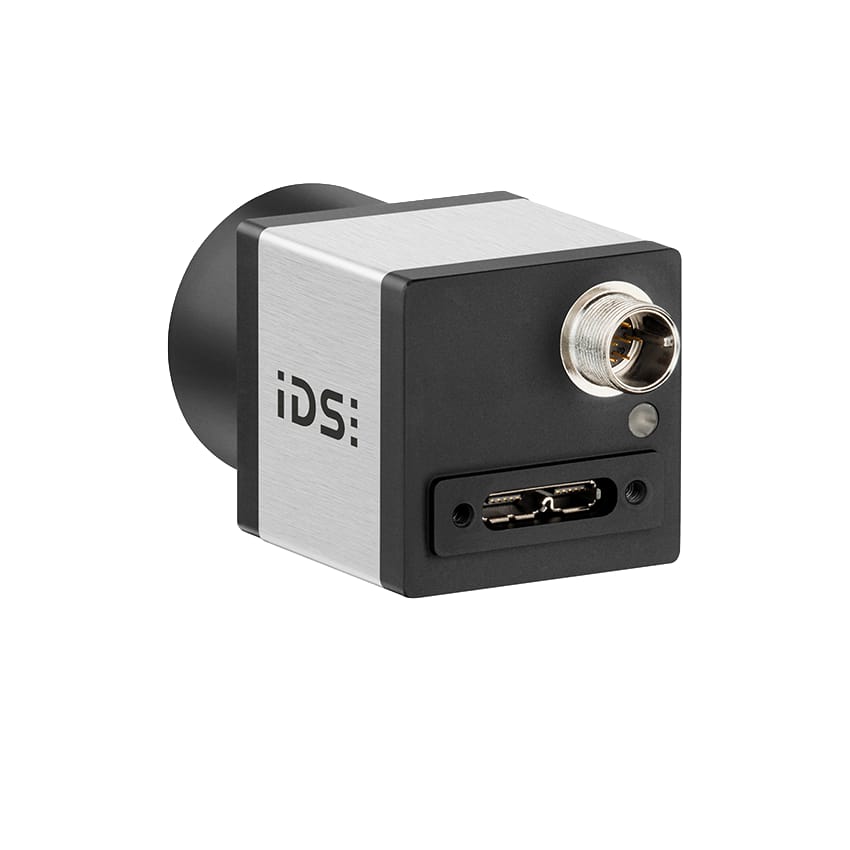

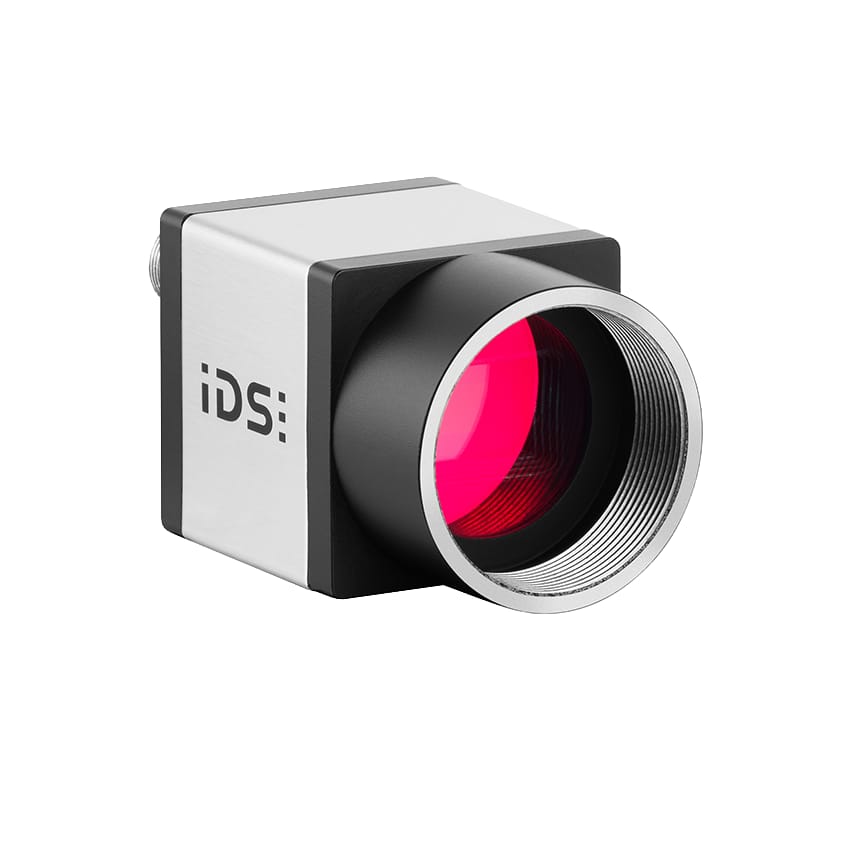

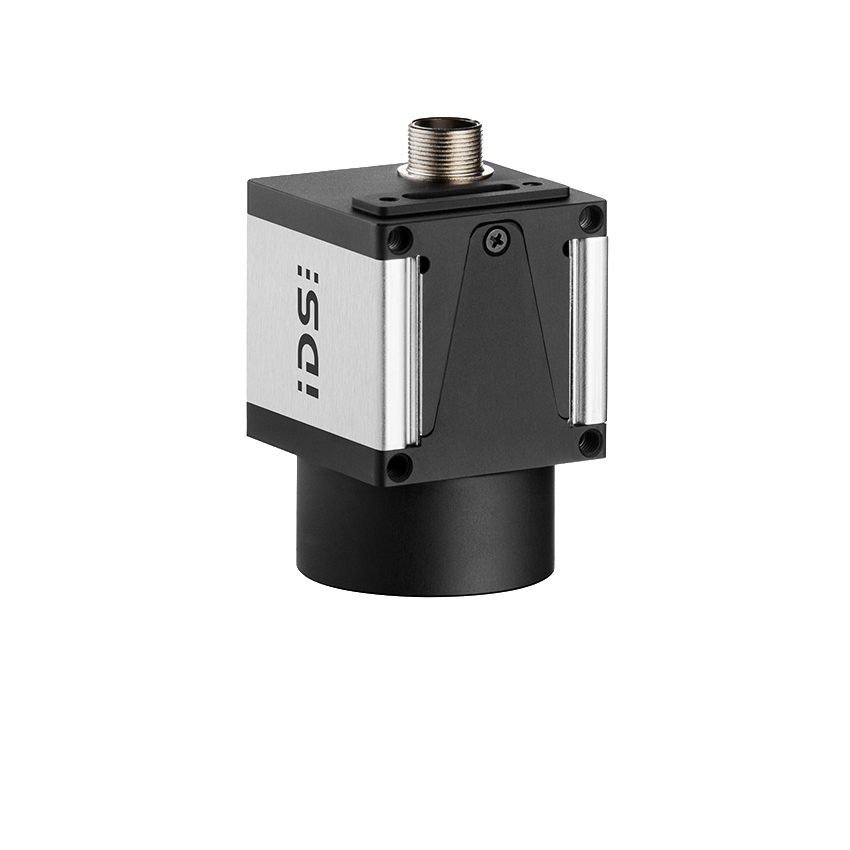

The U3-31F0CP industrial camera from IDS features a very compact housing thanks to its 29 x 29 mm Sugarcube format and is also very easy to integrate thanks to its USB3 Vision interface. The camera is available in both color and monochrome versions. The 5.10 MP Sony sensor (1/1.8", 2472 x 2064 px) from the Pregius S series ensures optimal image results and operates reliably at a frame rate of 75.2 fps, even in changing lighting conditions. Furthermore, the sensor boasts a remarkably small pixel size of just 2.74 µm, resulting in an exceptionally high pixel density.

Technical specifications

• Dimensions: 29 x 29 x 29 mm
• Material: Magnesium / Stainless steel
• Weight: 50 g
• Lens mount: C-mount
• Operating temperature: 0°C – 55°C
• Frame rate: 75 fps
• Exposure time min-max: 0.0085 ms – 2000 ms
• Power consumption: 2 W – 3.9 W
• Image memory: 128 MB
• Sensor: CMOS color or CMOS monochrome
• Resolution: 5.10 megapixels (2472 x 2064 pixels)
• Aspect ratio: 5:4
