EasyRobotics EasyPalletizer (discontinued)

The EasyRobotics EasyPalletizer is a robust palletizing station designed to work with any cobot from a large number of different brands. The station allows for easy setup, deployment and management in a compact and robust form.

Using a pre-built palletizing station like the EasyPalletizer keeps the palletizing workstation organized and easy to program and maintain.

Several options are available, including a fixed base or lift kit for the Cobot, giving it greater reach and flexibility.

This model has been discontinued and is no longer available.

Technical Questions

€8,800.00 - €20,000.00 excl. VAT.

From 900,00 € a month with lease buy or installment.

Learn more
  • Overview
  • Description
  • Downloads
  • FAQ
  • Similar products

Increases packaging efficiency and quality with minimal operating costs

Improve the quality and reliability of packaging operations through automation. Fewer errors, lower costs and higher accuracy are just three of the benefits to be expected.

Operation can be fully controlled by the operator

Although the EasyRobotics system is designed to require minimal operator input, the operator maintains full control (if needed) and can easily interact with, program and control the station.

Ethernet RJ45 connector

For monitoring or access via third-party products from outside the palletizer, the palletizer has a small slot for an Ethernet cable.

Push button

Above each of the lamps is a pushbutton for page operation. This allows an activation or "reset function" to be performed on the pages.

Pallet detection

The EasyPalletizer consists of four detection pins on each side of the pallet, which ensure the correct docking of the pallet before specifying palletization. The functionality ensures both loading stability and safe operation during component storage.

Multipurpose lights and Ethernet connector

On the front of the EasyPalletizer there are two I/O connectable multi-purpose lamps (with several configurable colors).

Featured on Unchained TV

Unfortunately, there are no use case videos yet for this product.
Click here to watch other videos on Unchained TV.

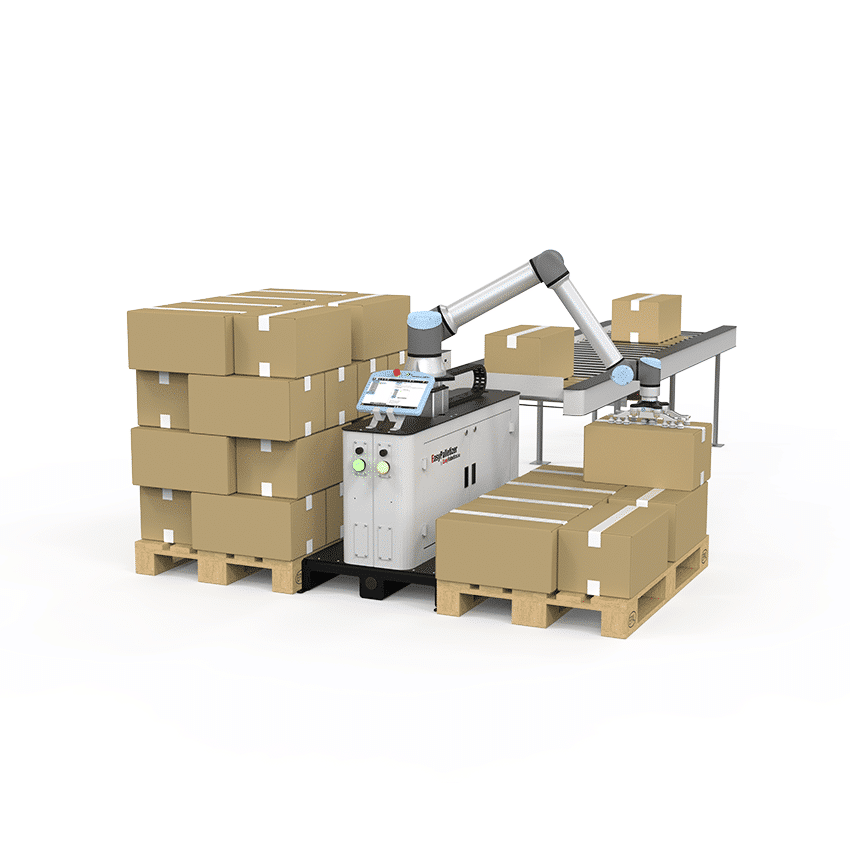

The EasyPalletizer is a platform designed to make palletizing within a factory easy and mobile. The EasyPalletizer consists of a Euro pallet sized console with compartments for robot control, cables, hosts and lifting module from SKF or pedestal. The EasyPalletizer is designed to be robust with a total weight of 300 KG without the robot and lifter mounted. Each side of the EasyPalletizer consists of a docking system for pallets, which measures the placement of the pallets.

The EasyPalletizer can be equipped with a robot arm from various manufacturers and a lifting module from SKF.
Palletizing is a term from industrial language; it is a process of arranging products on pallets in a specific order. With the advancement of technology, we see more and more the use of robots in the packaging sector. The industrial robots are used to avoid the repetitiveness of the workload and to assist in moving heavy elements.  The most common thing that needs to be palletized in an industry is boxes and crates.

The use of automation and mechanization has helped make it easier to arrange goods on the pallet. It is now more important than ever to install user-friendly palletizing technology in companies for packaging purposes.

Common Applications

  • Floor level palletizing
  • Load transfer stations to mobile robots form conveyors or other fixed units
  • Unload/load transfer systems
  • Dual palletizing system

About the system

The EasyPalletizer is a platform that makes palletizing effortless and smooth. It can be equipped with a robotic arm, which has several useful advantages for the packaging industry. Incorporating robotics into automation provides flexibility, reliability and productivity. The idea is to help with short product life cycles, the latest packaging designs, different product variations and batch production.
Inside the EasyPalletizer is a component plate for mounting products in the console. These can be: communication, air equipment, etc.

The standard palletizer can be supplied with

  • Fixed base (not mounted)
  • SKF base (not mounted)

Variant specifications

  • Palletizer One Base - For 2 pallets with 4 sensors and 2 LED lights. L1350*W866*H655, 220 kg
  • Palletizer One with Liftkit - For 2 pallets with 4 sensors and 2 LED lights. with Liftingkit (not mounted) L1350*B866*H855, 265 kg
  • Palletizer One with fixed base - For 2 pallets with 4 sensors and 2 LED lights. with fixed base 700 mm (not mounted) L1350*B866*H855, 245 Kg
  • Palletizer Two Base - For 2 pallets with 4 sensors and 2 LED lights. L1350*W1085*H855, 200 Kg
  • Palletizer Two with fixed base - For 2 pallets with 4 sensors and 2 LED lights. with fixed base (not mounted) L1350*B1085*H855, 230 Kg.
  • Palletizer Two with Liftkit - For 2 pallets with 4 sensors and 2 LED lights. with LiftKit (not mounted) L1350*B1085*H855, 230 kg

The EasyPalletizer is robustly designed with 300 KG total weight without mounted robot and lifter. Each side of the EasyPalletizer consists of a docking system for pallets, which measures the placement of the pallets.

Robot Image

EasyRobotics EasyPalletizer Datasheet (EN)

Download the datasheet (EN) of the EasyRobotics EasyPalletizer here!

Robot Image

STEP-Datei des EasyRobotics EasyPalletizer

Lade dir hier die STEP-Datei des EasyRobotics EasyPalletizer herunter!
